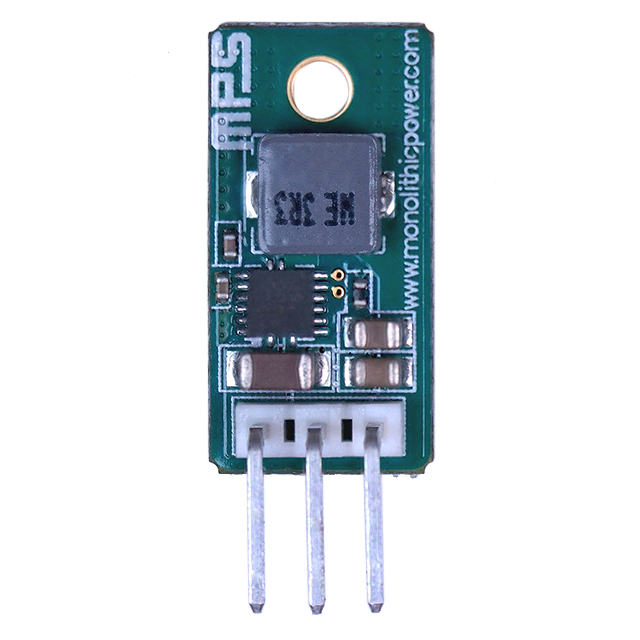

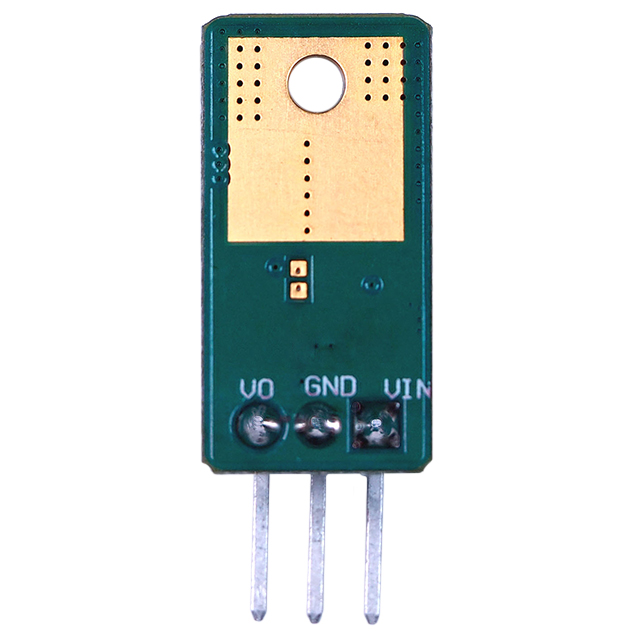

MEZD71201 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 4.5-24V INPUT, 1A, 2.5VOUT, DC/DC POWER SUPPLY
| Part | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Features | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Type | Package / Case | Current - Output (Max) [Max] | Voltage - Output 1 | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 2.5 V | Through Hole |
 Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 1.2 V | Through Hole |
Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 1.8 V | Through Hole |
 Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 3.3 V | Through Hole |
Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 1.5 V | Through Hole |
Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 4.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 1 V | Through Hole |
Monolithic Power Systems Inc. | 1 | 0.16 in | 4 mm | 20 mm | 0.79 " | 0.39 in | 10 mm | 85 °C | -40 C | ITE (Commercial) | OCP OTP OVP SCP UVLO | 6.5 V | 24 V | Linear Regulator Replacement | 3-SIP Module | 1.2 A | 5 V | Through Hole |
