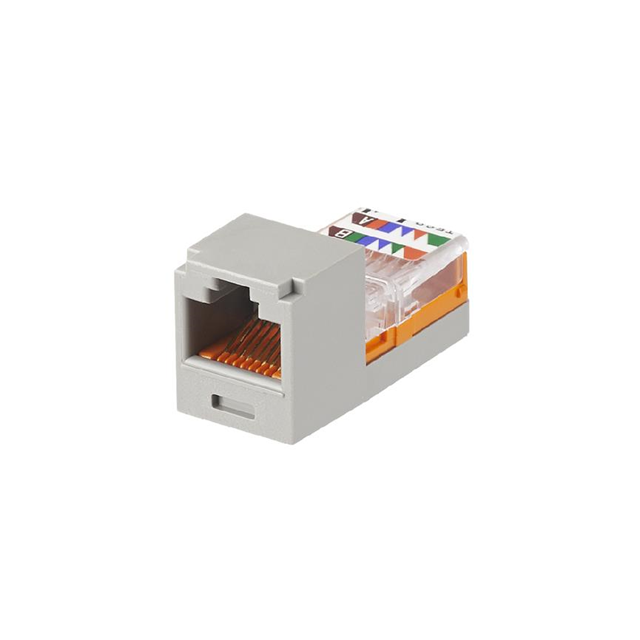

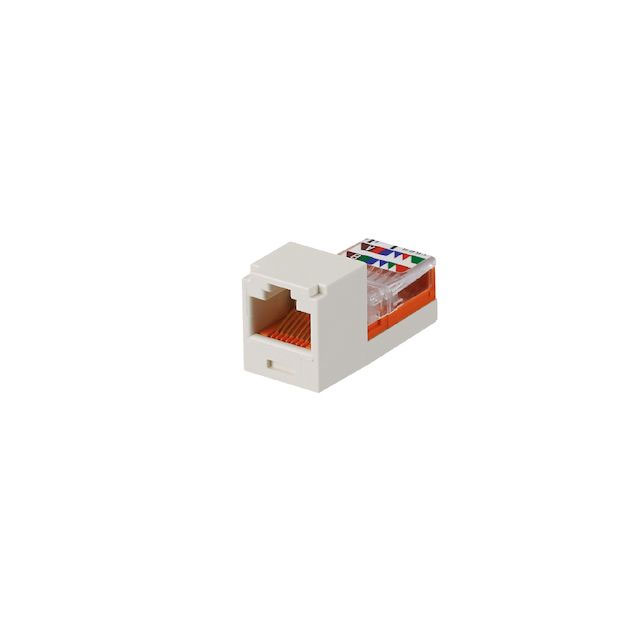

CJ588I Series
Manufacturer: Panduit Corp
Beta
⌘K
MODULAR CONNECTOR, RJ45 WIRED JACK, 1 X 1 (PORT), 8P8C, CAT5E, CABLE MOUNT
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | LED Color | Number of Rows | Shielding | Orientation | Termination | Number of Ports | Tab Direction | Number of Positions/Contacts | Contact Material | Contact Finish | Mounting Type | Ratings | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Acrylonitrile Butadiene Styrene (ABS) | 65 °C | -10 °C | 50 µin | 1.27 µm | Does Not Contain LED | 1 | Unshielded | Straight | IDC | 1 | Up | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Gold | Panel Mount | Cat5e | Jack |
 Panduit Corp | Acrylonitrile Butadiene Styrene (ABS) | 65 °C | -10 °C | Does Not Contain LED | 1 | Unshielded | Straight | IDC | 1 | Up | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Panel Mount | Cat5e | Jack |
