9945 Series
Manufacturer: Belden Inc.
Beta
⌘K

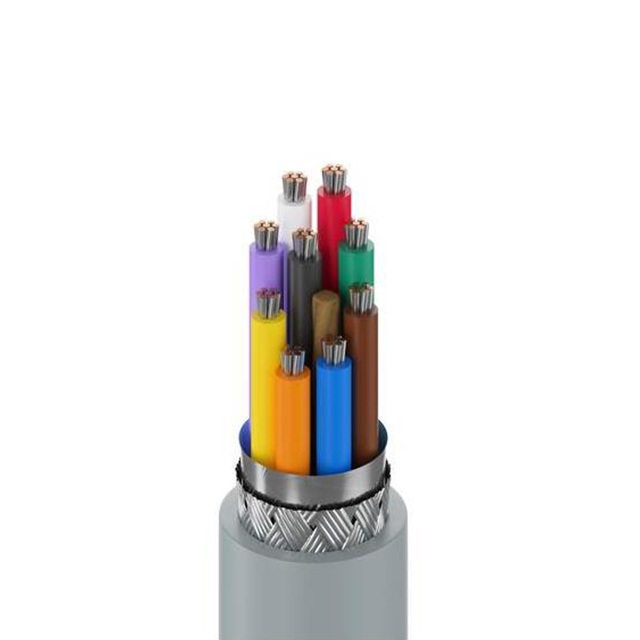

CABLE 9COND 22AWG CHRM SHD
| Part | Shield Material | Shield Coverage | Conductor Material | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Insulation | Voltage | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Usage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | Copper Tinned | Multi-Conductor | 22 AWG | 30 AWG | 7 | Chrome | Poly-Vinyl Chloride (PVC) | 300 VDC | Braid Foil | 0.28 in | 7.11 mm | UL Style 2464 | Computer | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 9 | 80 °C | -30 ░C |
