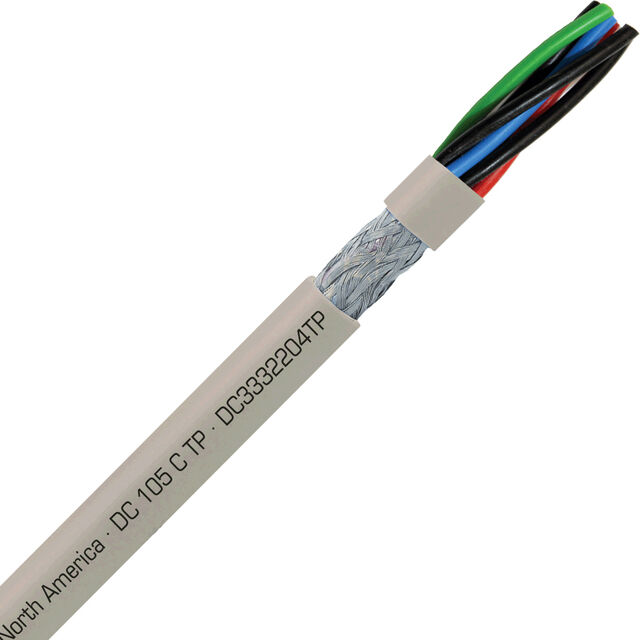

DC3332204 Series
Manufacturer: SAB North America
Beta
⌘K
MULTI-PAIR 8COND 22AWG GRY 1=1FT
| Part | Conductor Insulation | Jacket Color | Features | Shield Material | Ratings | Cable Type | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Length | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SAB North America | Poly-Vinyl Chloride (PVC) Poly-Vinyl Chloride (PVC) Semi-Rigid | Gray Tan | Flame Retardant Oil Resistant | Copper Tinned | UL Style CMG UL Style PLTC | Multi-Pair | 22 AWG | Poly-Vinyl Chloride (PVC) | 8 | 30 AWG | 7 | 300 VDC | Enter Number of Feet in Order Quantity | Copper Tinned | 105 ░C | -25 °C | 0.323 in | 8.2 mm | Braid Foil |
 SAB North America | Poly-Vinyl Chloride (PVC) Poly-Vinyl Chloride (PVC) Semi-Rigid | Gray Tan | Drain Wire Flame Retardant Oil Resistant | Copper Tinned | UL Style CMG UL Style PLTC | Multi-Conductor | 22 AWG | Poly-Vinyl Chloride (PVC) | 4 | 30 AWG | 7 | 300 VDC | Enter Number of Feet in Order Quantity | Copper Tinned | 105 ░C | -25 °C | 0.224 " | 5.69 mm | Braid Foil |
