222HMS Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Orientation	Actuator Type	Contact Rating @ Voltage	Circuit	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Mounting Type	Switch Function	Outline [x]	Outline [y]	Operating Force	Actuator Length, Right Angle

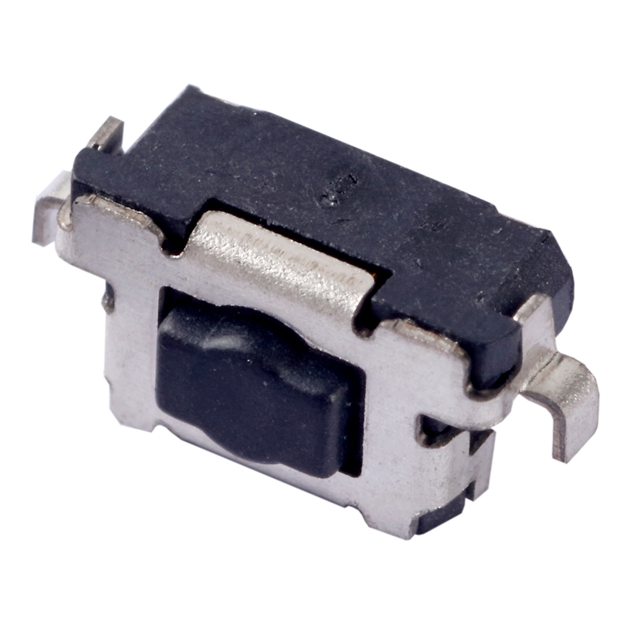

CTS Electrocomponents 222HMSAARK	0.15 mm	1000000 Cycles	Side Actuated	Rectangular Button	0.05 A 12 VDC	SPST-NO	Non-Illuminated	85 °C	-40 C	SMD (SMT) Tab	Tactile Feedback	Edge Mount Right Angle	Off-Mom	7.3 mm	2.55 mm	120 gf	2.1 mm

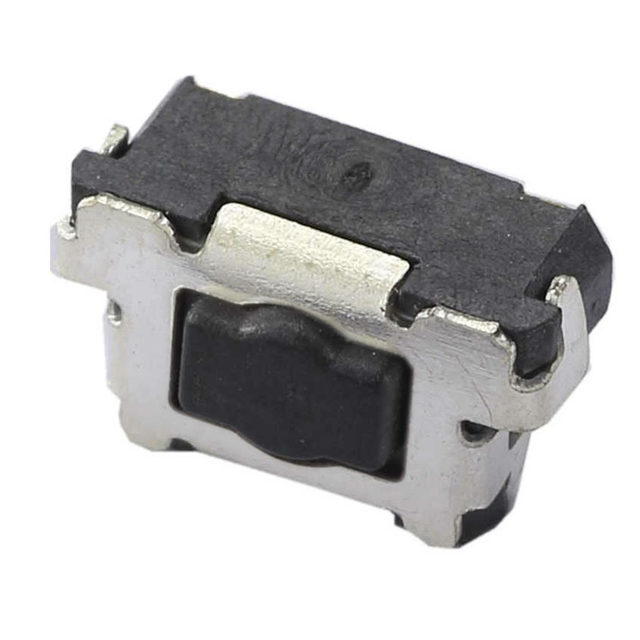

CTS Electrocomponents 222HMSAAR	0.15 mm	1000000 Cycles	Side Actuated	Rectangular Button	0.05 A 12 VDC	SPST-NO	Non-Illuminated	85 °C	-40 C	SMD (SMT) Tab	Tactile Feedback	Edge Mount Right Angle	Off-Mom	6.2 mm	2.55 mm	120 gf	2.1 mm

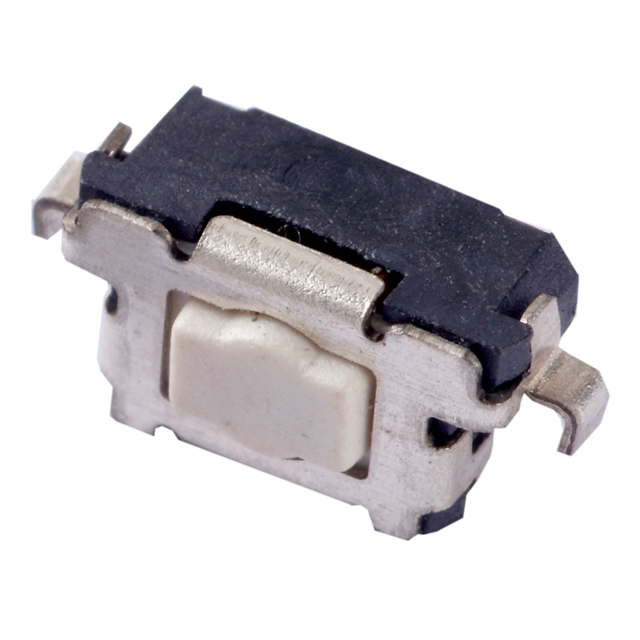

CTS Electrocomponents 222HMSACRK	0.15 mm	500000 Cycles	Side Actuated	Rectangular Button	0.05 A 12 VDC	SPST-NO	Non-Illuminated	85 °C	-40 C	SMD (SMT) Tab	Tactile Feedback	Edge Mount Right Angle	Off-Mom	7.3 mm	2.55 mm	240 gf	2.1 mm

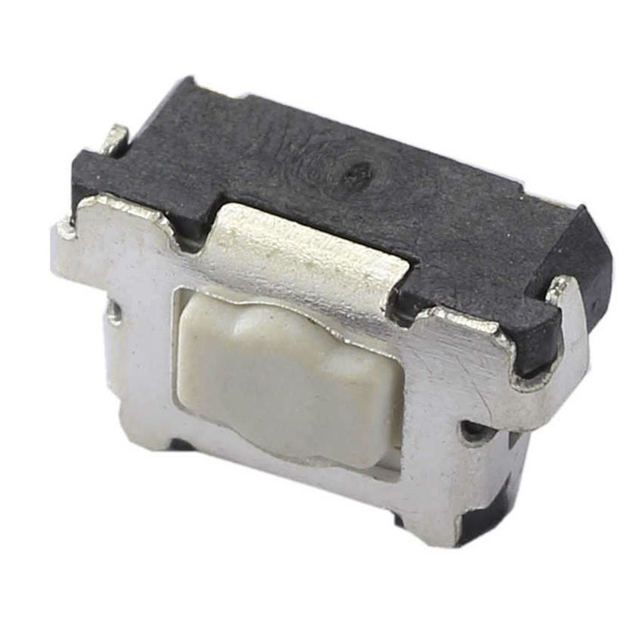

CTS Electrocomponents 222HMSACR	0.15 mm	500000 Cycles	Side Actuated	Rectangular Button	0.05 A 12 VDC	SPST-NO	Non-Illuminated	85 °C	-40 C	SMD (SMT) Tab	Tactile Feedback	Edge Mount Right Angle	Off-Mom	6.2 mm	2.55 mm	240 gf	2.1 mm
