C3AEG-2 Series

Catalog

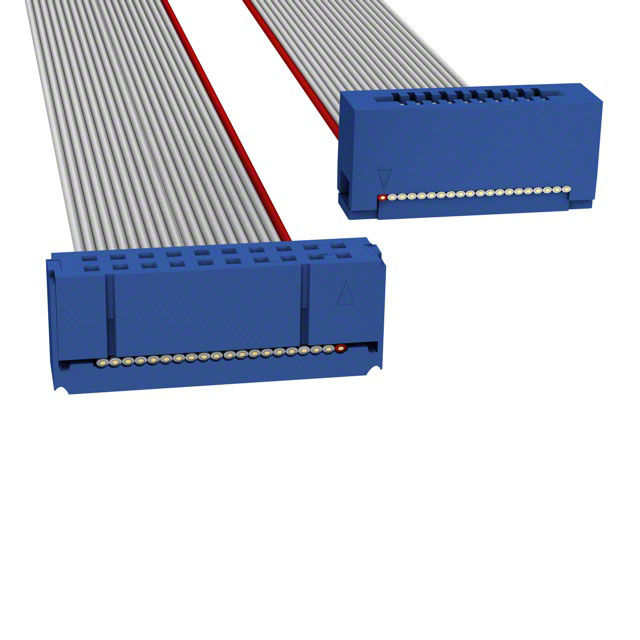

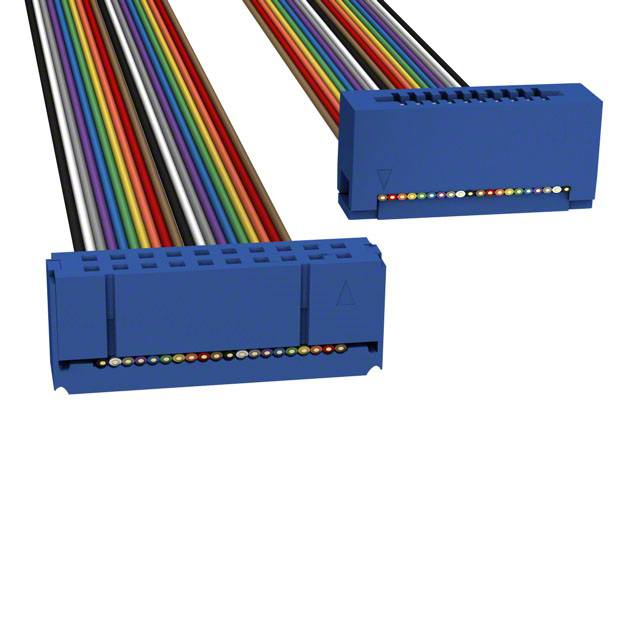

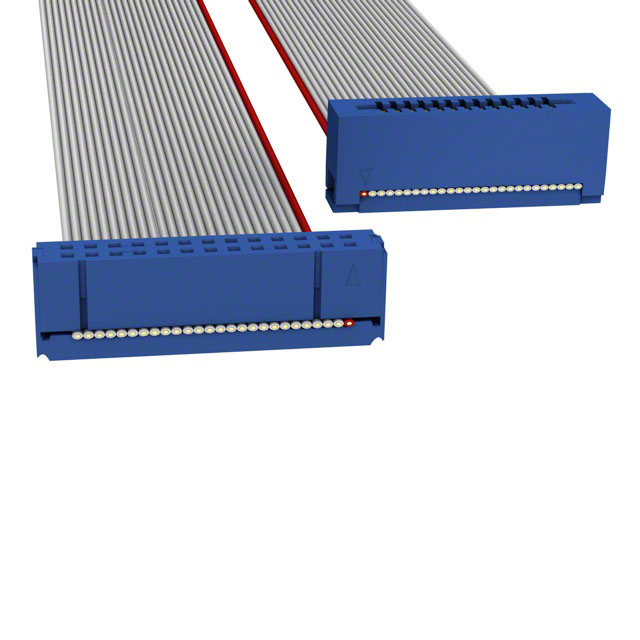

IDC CABLE - CSC20G/AE20M/CCE20G

Part	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Color	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Pitch - Cable	Pitch - Cable	Connector Type	Contact Finish	Shielding	Number of Positions	Length	Length	Length
CW Industries C3AEG-2018M	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple Ribbon	IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	20
CW Industries C3AEG-2006M	0.1 in	2.54 mm			Multiple Ribbon	IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	20	152.4 mm	0.5 '	6 "
CW Industries C3AEG-2636M	0.1 in	2.54 mm			Multiple Ribbon	IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	26	91.44 cm	3 ft
CW Industries C3AEG-2618M	0.1 in	2.54 mm	457.2 mm	1.5 ft	Multiple Ribbon	IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	26
CW Industries C3AEG-2006G	0.1 in	2.54 mm				IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	20	152.4 mm	0.5 '	6 "
CW Industries C3AEG-2606M	0.1 in	2.54 mm			Multiple Ribbon	IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	26	152.4 mm	0.5 '	6 "
CW Industries C3AEG-2018G	0.1 in	2.54 mm	457.2 mm	1.5 ft		IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	20
CW Industries C3AEG-2606G	0.1 in	2.54 mm				IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	26	152.4 mm	0.5 '	6 "
CW Industries C3AEG-2036G	0.1 in	2.54 mm				IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	20	91.44 cm	3 ft
CW Industries C3AEG-2618G	0.1 in	2.54 mm	457.2 mm	1.5 ft		IDC	0.25 Ám	10 Áin	2	0.05 in	1.27 mm	Socket to Card Edge	Gold	Unshielded	26
