NHD-0208 Series

Catalog

LCD MOD 16DIG 8X2 TRANSF YLW/GRN

Part	Display Type	Number of Characters	Dot Size [y]	Dot Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Text Color	Background Color	Interface	Character Format [x]	Character Format [y]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Viewing Area [x]	Viewing Area [y]	Display Mode	Display Format [x]	Display Format [y]	Character Size [y]	Character Size [z]	Voltage - Supply [Max]	Voltage - Supply [Min]	Controller Type	Backlight

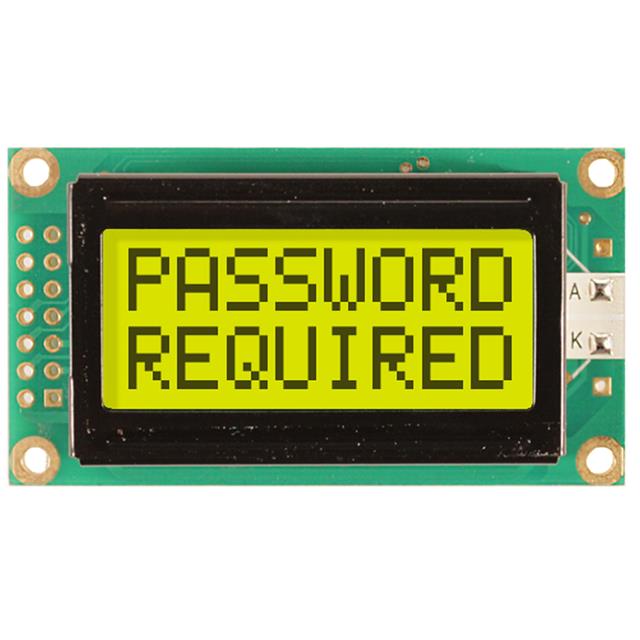

Newhaven Display Intl NHD-0208BZ-FL-YBW	STN - Super-Twisted Nematic	16	0.66 mm	0.56 mm	-20 ░C	70 °C	Blue	Green	Parallel	5 Dots	8 Dots	32 mm	58 mm	13 mm	38 mm	16 mm	Transflective	8	2	2.96 mm	5.56 mm	5.5 V	4.7 V	SPLC780D ST7066U

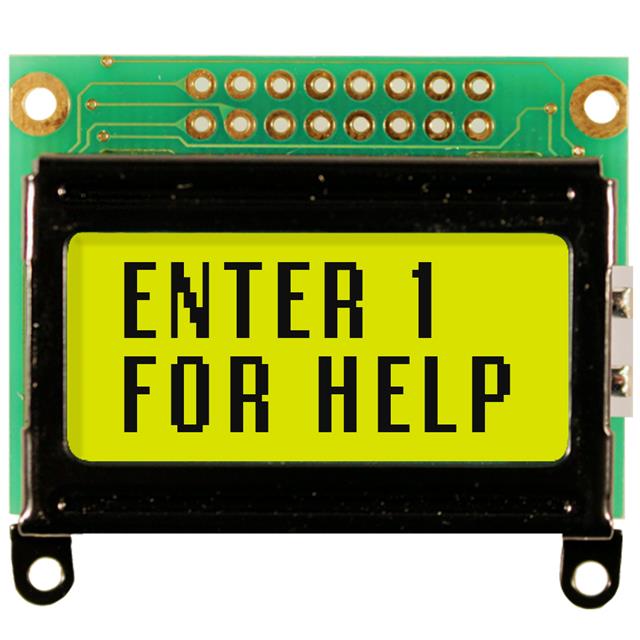

Newhaven Display Intl NHD-0208AZ-FL-GBW	STN - Super-Twisted Nematic	16	0.55 mm	0.55 mm	-20 ░C	70 °C	Blue	Green	Parallel	5 Dots	8 Dots	35.4 mm	40 mm	13.5 mm	30.4 mm	13.9 mm	Transflective	8	2			5.5 V	4.5 V	SPLC780D ST7066U

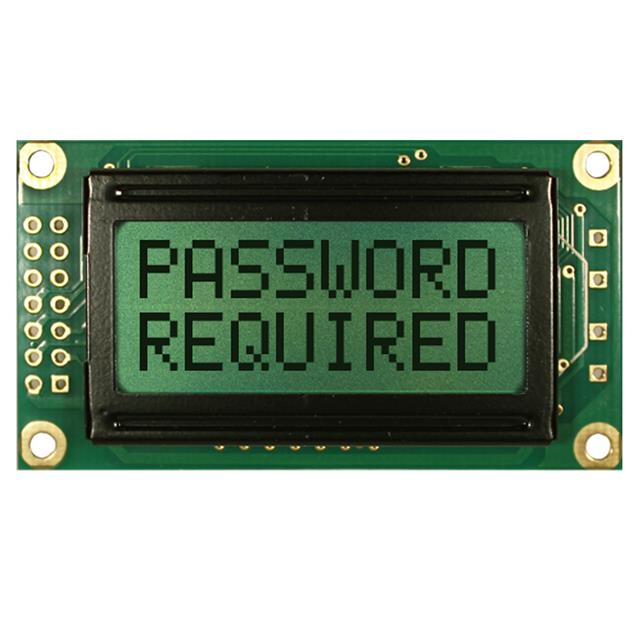

Newhaven Display Intl NHD-0208BZ-RN-YBW	STN - Super-Twisted Nematic	16	0.66 mm	0.56 mm	-20 ░C	70 °C	Gray	Green	Parallel	5 Dots	8 Dots	32 mm	58 mm	9.5 mm	38 mm	16 mm	Reflective	8	2	2.96 mm	5.56 mm	5.5 V	4.7 V	SPLC780D ST7066U

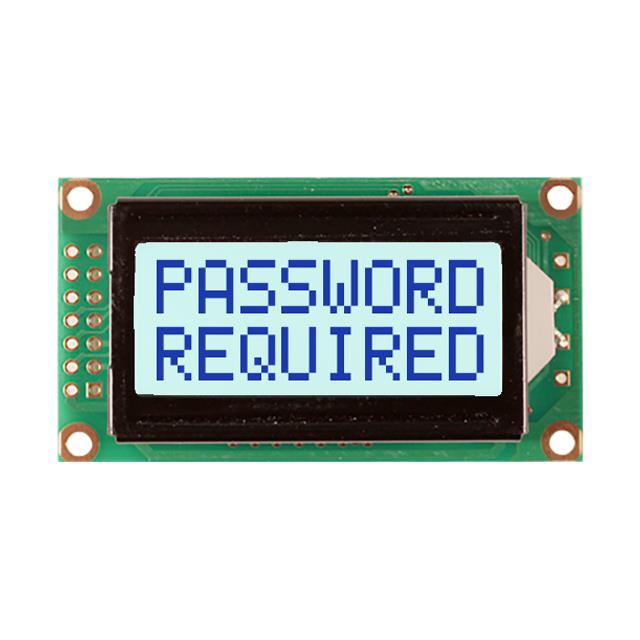

Newhaven Display Intl NHD-0208BZ-FSW-GBW-33V3	STN - Super-Twisted Nematic	16	0.66 mm	0.56 mm	-20 ░C	70 °C	Blue	White	Parallel	5 Dots	8 Dots	32 mm	58 mm	13 mm	38 mm	16 mm	Transflective	8	2	2.96 mm	5.56 mm	3.5 V	3.1 V	SPLC780D ST7066U	LED - White

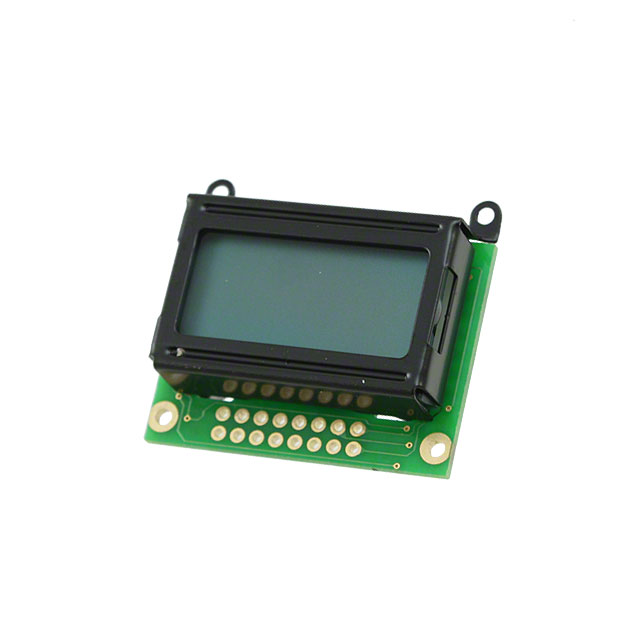

Newhaven Display Intl NHD-0208AZ-FSW-GBW-3V3	STN - Super-Twisted Nematic	16	0.55 mm	0.55 mm	-20 ░C	70 °C	Blue	Gray	Parallel	5 Dots	8 Dots	23.2 mm	40 mm	13.5 mm	30.4 mm	13.9 mm	Transflective	8	2			3.3 V	2.7 V		LED - White

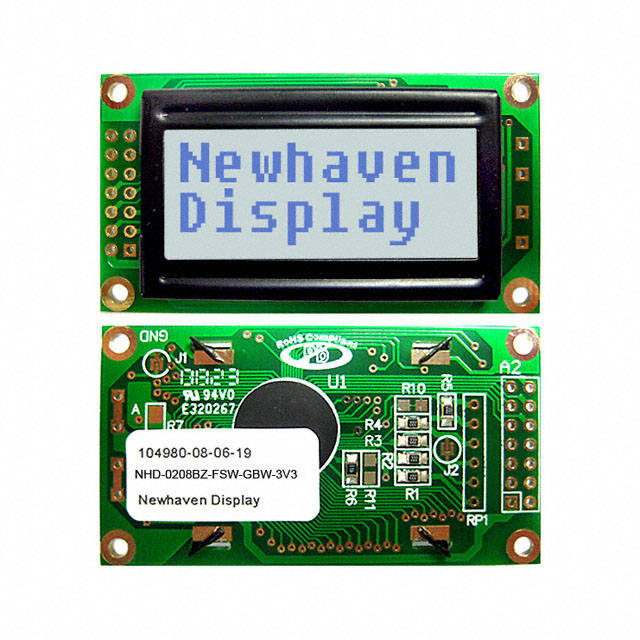

Newhaven Display Intl NHD-0208BZ-FSW-GBW-3V3	STN - Super-Twisted Nematic	16	0.66 mm	0.56 mm	-20 ░C	70 °C	Gray	White	Parallel	5 Dots	8 Dots	32 mm	58 mm	13 mm	38 mm	16 mm	Transflective	8	2	2.96 mm	5.56 mm	3.3 V	2.7 V		LED - White

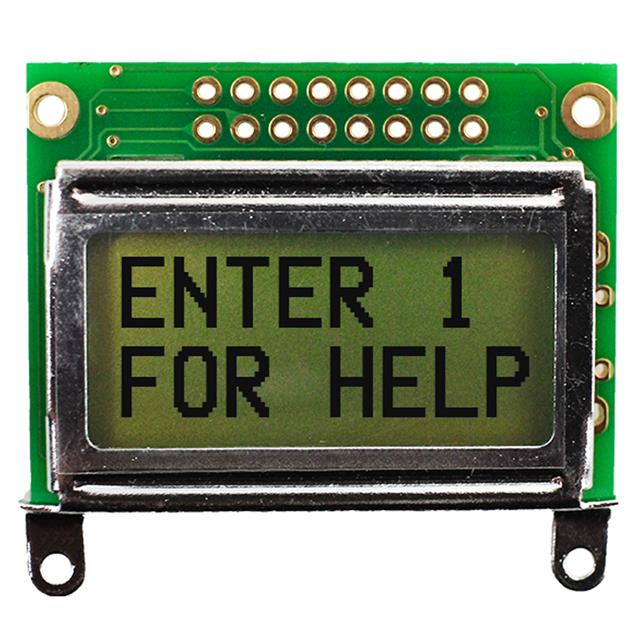

Newhaven Display Intl NHD-0208AZ-RN-YBW	STN - Super-Twisted Nematic	16	0.55 mm	0.55 mm	-20 ░C	70 °C	Gray	Green	Parallel	5 Dots	8 Dots	35.4 mm	40 mm	13.5 mm	30.4 mm	13.9 mm	Reflective	8	2			5.5 V	4.5 V	SPLC780D ST7066U

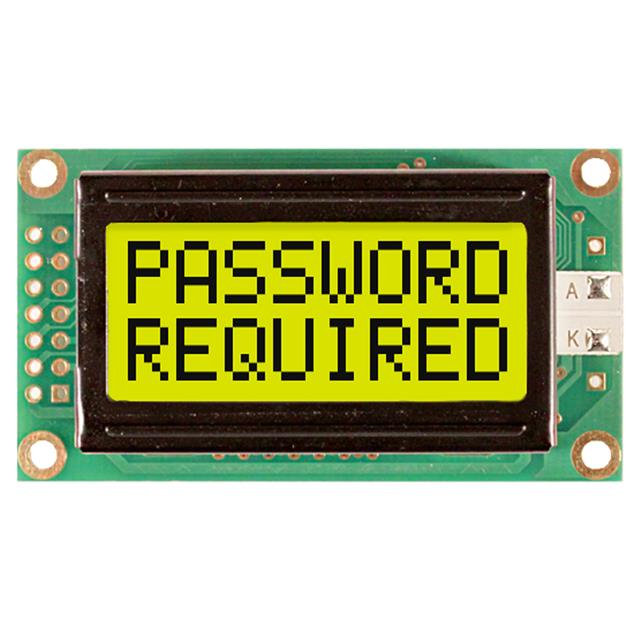

Newhaven Display Intl NHD-0208BZ-FL-GBW	STN - Super-Twisted Nematic	16	0.66 mm	0.56 mm	-20 ░C	70 °C	Blue	Green	Parallel	5 Dots	8 Dots	32 mm	58 mm	13 mm	38 mm	16 mm	Transflective	8	2	2.96 mm	5.56 mm	5.5 V	4.7 V	SPLC780D ST7066U

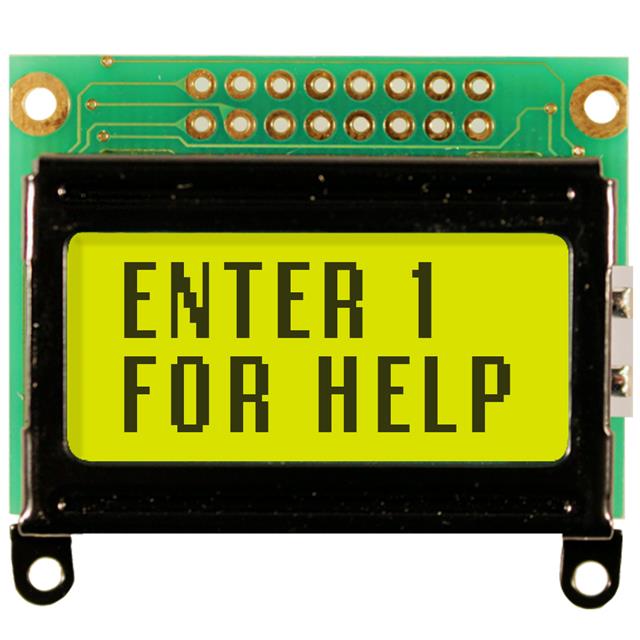

Newhaven Display Intl NHD-0208AZ-FL-YBW	STN - Super-Twisted Nematic	16	0.55 mm	0.55 mm	-20 ░C	70 °C	Gray	Green	Parallel	5 Dots	8 Dots	35.4 mm	40 mm	13.5 mm	30.4 mm	13.9 mm	Transflective	8	2			5.5 V	4.5 V	SPLC780D ST7066U

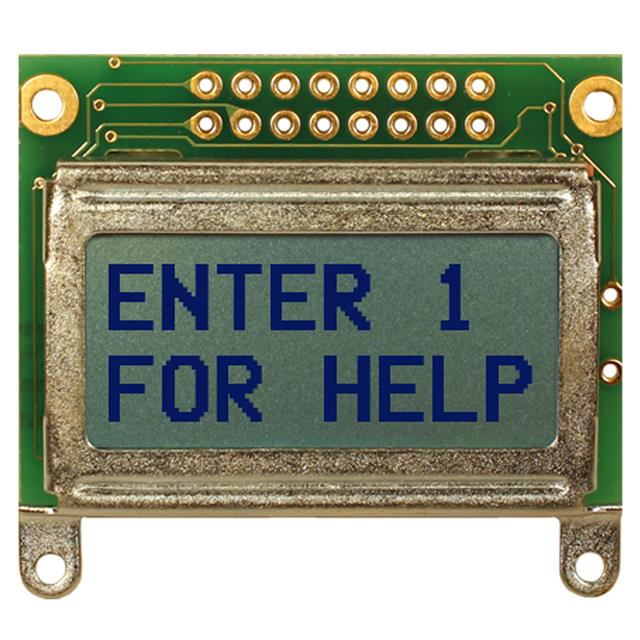

Newhaven Display Intl NHD-0208AZ-RN-GBW	STN - Super-Twisted Nematic	16	0.55 mm	0.55 mm	-20 ░C	70 °C	Blue	Gray	Parallel	5 Dots	8 Dots	35.4 mm	40 mm	13.5 mm	30.4 mm	13.9 mm	Reflective	8	2			5.5 V	4.5 V	SPLC780D ST7066U
