TPS22958 Series
Manufacturer: Texas Instruments
Beta
⌘K
5.5-V, 6-A, 13-MΩ LOAD SWITCH WITH ADJ. RISE TIME AND OPTIONAL OUTPUT DISCHARGE
| Part | Voltage - Supply (Vcc/Vdd) | Operating Temperature [Max] | Operating Temperature [Min] | Ratio - Input:Output [custom] | Switch Type | Number of Outputs | Interface | Mounting Type | Package / Case | Package / Case [custom] | Package / Case | Input Type | Voltage - Load [Min] | Voltage - Load [Max] | Features | Output Type | Output Configuration | Rds On (Typ) | Current - Output (Max) [Max] | Embedded | Function | Supplied Contents | Utilized IC / Part | Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 105 °C | -40 °C | 1:1 | General Purpose | 1 | On/Off | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Non-Inverting | 2.5 V | 5.5 V | Load Discharge Slew Rate Controlled | N-Channel | High Side | 14 mOhm | 4 A | |||||||

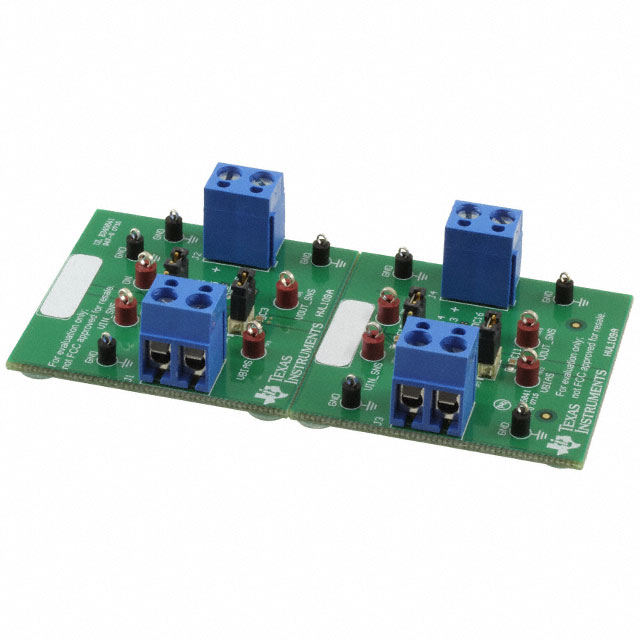

 Texas Instruments | Power Distribution Switch (Load Switch) | Board(s) | TPS22958 | Power Management | |||||||||||||||||||||
Texas Instruments | 105 °C | -40 °C | 1:1 | General Purpose | 1 | On/Off | Surface Mount | 8-MSOP 8-TSSOP Exposed Pad | 0.118 in 3 mm | Non-Inverting | 2.5 V | 5.5 V | Load Discharge Slew Rate Controlled | N-Channel | High Side | 14 mOhm | 6 A | 8-HVSSOP | |||||||
Texas Instruments | 105 °C | -40 °C | 1:1 | General Purpose | 1 | On/Off | Surface Mount | 8-MSOP 8-TSSOP | 0.118 in | 3 mm | Non-Inverting | 2.5 V | 5.5 V | Slew Rate Controlled | N-Channel | High Side | 14 mOhm | 4 A |
