2842103 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,BRK HDR,SRVT,SMD,0.38AU,T

Part	Pitch - Mating [x]	Pitch - Mating [x]	Features	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Voltage Rating	Insulation Height	Insulation Height	Number of Rows	Contact Length - Mating	Contact Length - Mating	Connector Type	Termination	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Insulation Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Shrouding	Contact Material	Fastening Type	Contact Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

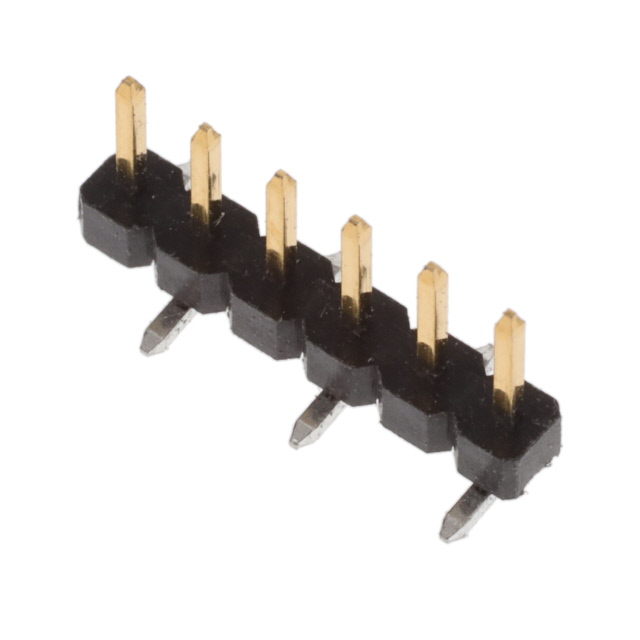

TE Connectivity Raychem Cable Protection 2842103-6	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin	6	All	15 µin	0.38 µm

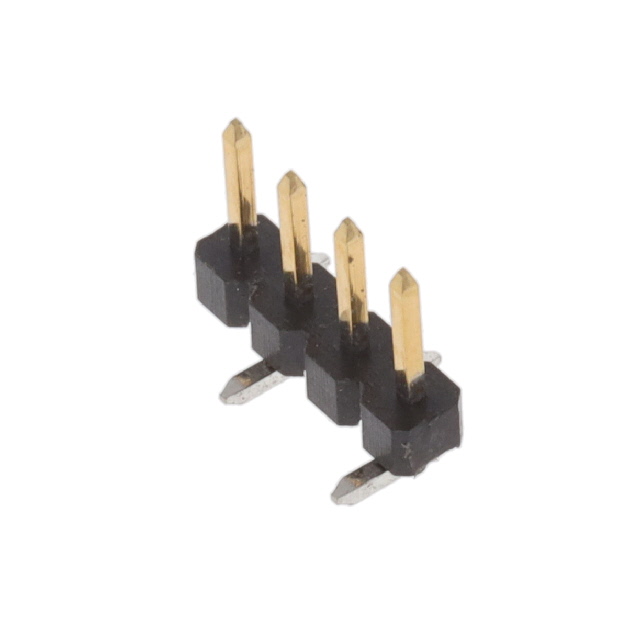

TE Connectivity Raychem Cable Protection 2842103-4	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin	4	All	15 µin	0.38 µm

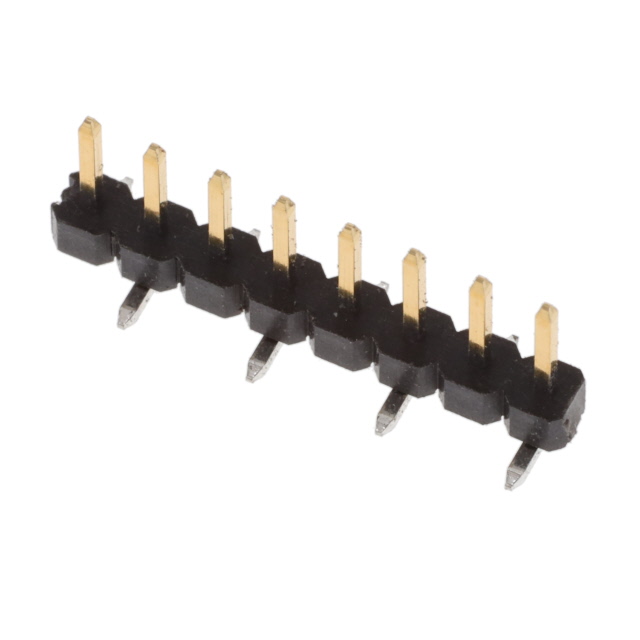

TE Connectivity Raychem Cable Protection 2842103-8	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin	8	All	15 µin	0.38 µm

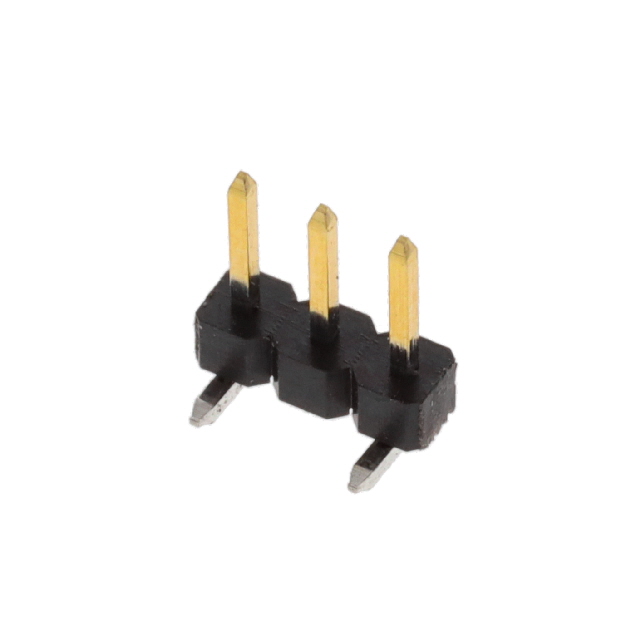

TE Connectivity Raychem Cable Protection 2842103-3	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin		All	15 µin	0.38 µm

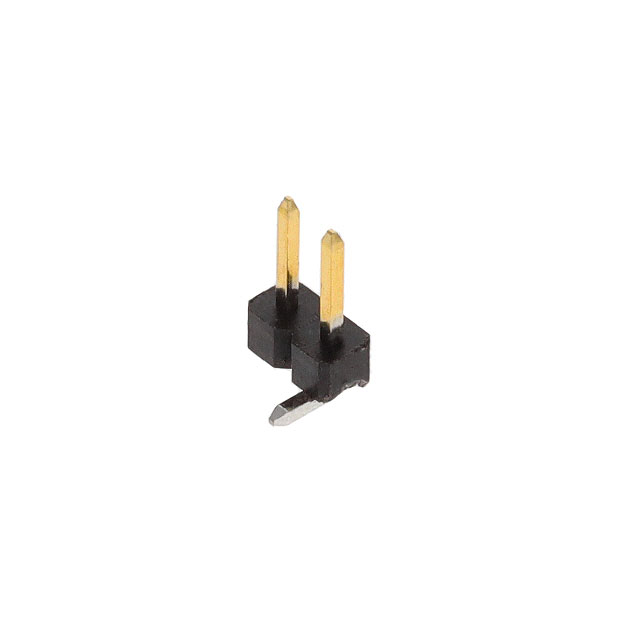

TE Connectivity Raychem Cable Protection 2842103-2	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin	2	All	15 µin	0.38 µm

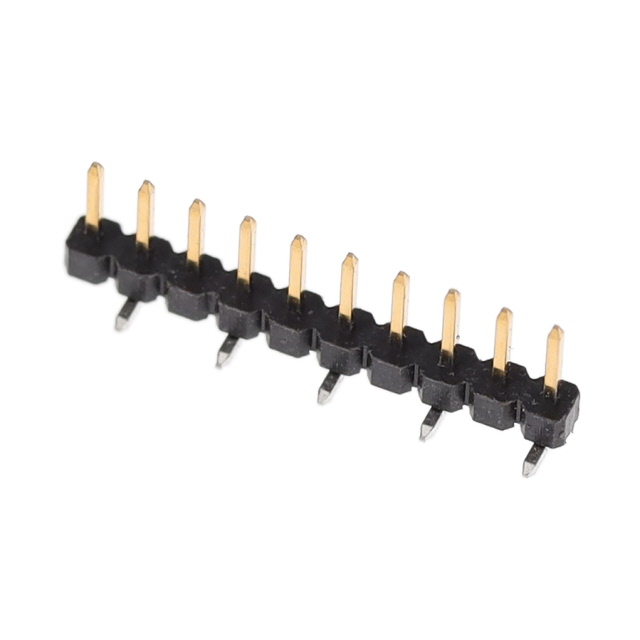

TE Connectivity Raychem Cable Protection 1-2842103-0	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin	10	All	15 µin	0.38 µm

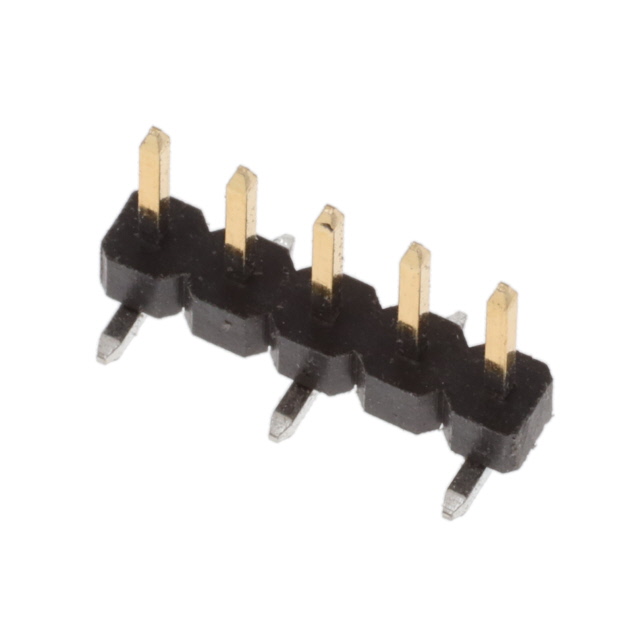

TE Connectivity Raychem Cable Protection 2842103-5	0.079 in	2 mm	Pick and Place	Surface Mount	Gold	2 A	125 VAC	1.5 mm	0.059 "	1	4 mm	0.157 in	Breakaway Header	Solder	Square	2 çm	78.7 çin	Black	Thermoplastic	UL94 V-0	125 °C	-40 °C	Tin	Unshrouded	Copper Alloy	Push-Pull	Male Pin		All	15 µin	0.38 µm
