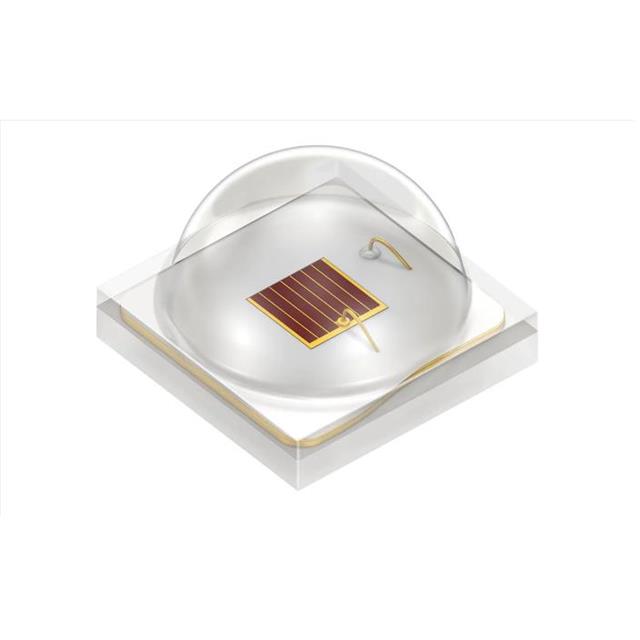

GF CSSRML.24 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K
LED OSLON
| Part | Thermal Resistance of Package | Viewing Angle | Color | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Temperature - Test | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Wavelength | Current - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 2 °C/W | 120 ° | Far Red | 380 mW | 565 mW | 473 mW | 25 °C | SMD | 2.29 mm | 0.09 " | 3 mm | 0.118 in | 3 mm | 0.118 " | 350 mA | 3030 Metric | 1212 | 1.95 V | 730 nm | 1 A | Surface Mount |
