OSTNR04 Series

Catalog

3.5MM 2 PC TERM BLOCK HEADER VER

Part	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Housing Material	Contact Material	Insulation Height	Insulation Height	Pitch	Pitch	Voltage - UL	Termination Style	Current - UL	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Type	Contact Mating Finish	Header Orientation	Positions Per Level	Mounting Type	Features	Insulation Height [z]	Insulation Height [z]
On Shore Technology Inc. OSTNR041200	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	11.6 mm	0.457 in	3.5 mm	0.138 "	300 V	Solder	8 A	2	115 °C	-40 C	4	Black	Header Male Pins Shrouded (4 Side)	Tin	Vertical	2	Through Hole	Mating Flange
On Shore Technology Inc. OSTNR041100	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper	11.6 mm	0.457 in	3.5 mm	0.138 "	300 V	Solder	8 A	2	115 °C	-40 C	4	Black	Header Male Pins Shrouded (4 Side)	Tin	Vertical	2	Through Hole

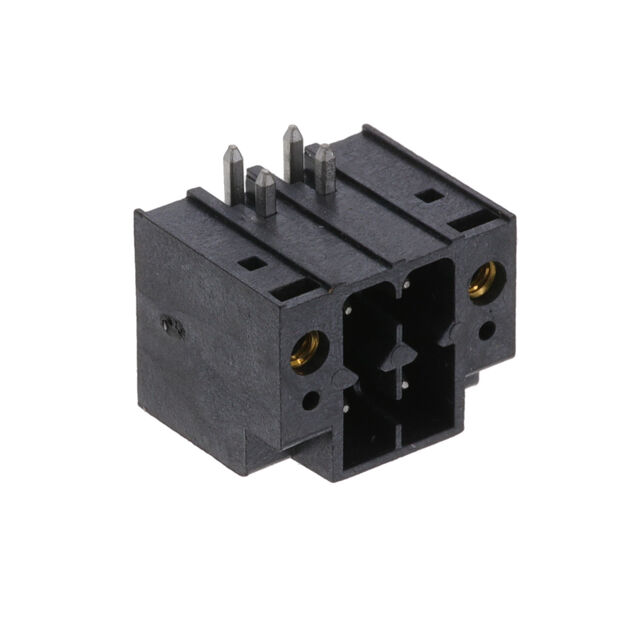

On Shore Technology Inc. OSTNR041201	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper			3.5 mm	0.138 "	150 V	Solder	8 A	2	115 °C	-40 C	4	Black	Header Male Pins Shrouded (4 Side)	Tin	90° Right Angle	2	Through Hole	Mating Flange	10.8 mm	0.425 in
On Shore Technology Inc. OSTNR041101	UL94 V-0	2 mm	0.079 in	Liquid Crystal Polymer (LCP)	Copper			3.5 mm	0.138 "	150 V	Solder	8 A	2	115 °C	-40 C	4	Black	Header Male Pins Shrouded (4 Side)	Tin	90° Right Angle	2	Through Hole		10.8 mm	0.425 in
