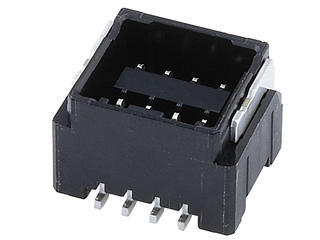

2.00mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Matte Tin Plating, 4 Circuits, Low-Halogen, Black
2.00mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Matte Tin Plating, 4 Circuits, Low-Halogen, Black
2.00mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Matte Tin Plating, 4 Circuits, Low-Halogen, Black
| Part | Number of Positions | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish - Post | Contact Shape | Shrouding | Style | Number of Positions Loaded | Features | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Termination | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Contact Type | Voltage Rating | Insulation Color | Insulation Material | Number of Rows [custom] | Fastening Type | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 12 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Pick and Place | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
 Molex | 10 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Pick and Place | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
Molex | 6 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Pick and Place | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
Molex | 14 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Pick and Place Solder Retention | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
 Molex | 26 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Solder Retention | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
Molex | 4 | 0.358 " | 9.1 mm | -40 C | 105 ░C | 2.8 A | Tin | Rectangular | Shrouded - 4 Wall | Board to Cable/Wire | All | Pick and Place | 0.079 " | 2 mm | Brass | Surface Mount | Solder | 39.4 µin | 1 µm | Male Pin | 250 VAC | Black | Nylon Polyamide (PA) | 2 | Push-Pull | Header | UL94 V-0 |
