PKH.N0 Series
Manufacturer: LEMO
Beta
⌘K

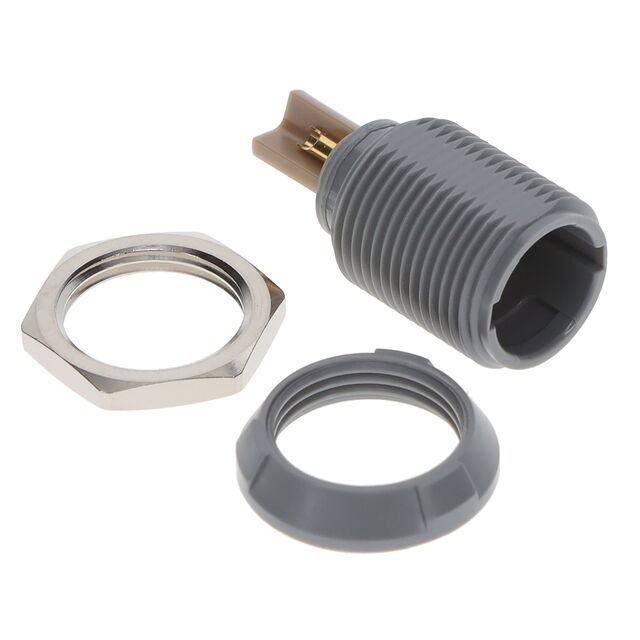

CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Mounting Feature | Applications | Shielding | Color | Shell Material | Number of Positions | Fastening Type | Current Rating (Amps) | Connector Type | Shell Size - Insert | Primary Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Ingress Protection | Insert Material | Contact Finish - Mating | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO | Front and Rear Side Nut | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Gray Yellow | Polysulfone (PSU) | 3 | Detent Lock Push-Pull | 9 A | Receptacle Male Pins | N03 | Plastic | 250 VAC | 150 °C | -50 °C | H | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gold | Panel Mount |
 LEMO | Front and Rear Side Nut | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Gray | Polysulfone (PSU) | 3 | Detent Lock Push-Pull | 9 A | Receptacle Male Pins | N03 | Plastic | 250 VAC | 150 °C | -50 °C | H | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gold | Panel Mount |
LEMO | Front and Rear Side Nut | Automotive Industrial Medical Testing Equipment & Measurement | Unshielded | Gray Red | Polysulfone (PSU) | 3 | Detent Lock Push-Pull | 9 A | Receptacle Male Pins | N03 | Plastic | 250 VAC | 150 °C | -50 °C | H | IP50 - Dust Protected | Polyetheretherketone (PEEK) | Gold | Panel Mount |
