RD1-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPST 30A 12V
| Part | Electrical Life | Mechanical Life | Circuit | Illumination Voltage (Nominal) | Termination Style | Actuator Marking | Voltage Rating - DC | Mounting Type | Color - Actuator/Cap | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Illumination Type, Color | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Steps | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | No Marking | 12 V | Panel Mount Threaded Body with Nut | Blue | On-Off | 85 °C | -25 °C | 12.2 mm Dia | Blue LED | Concave (Curved) - Illuminated |
 Switch Components | 6000 Cycles | 10000 Steps | SPST | Quick Connect - 0.250" (6.3mm) | No Marking | 12 V | Panel Mount Threaded Body with Nut | Black | On-Off | 85 °C | -25 °C | 12.2 mm Dia | Concave (Curved) | ||

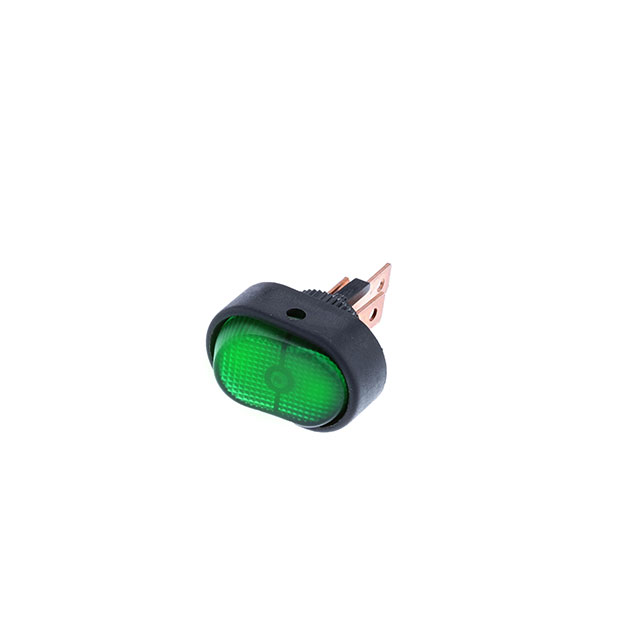

 Switch Components | 6000 Cycles | 10000 Steps | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | No Marking | 12 V | Panel Mount Threaded Body with Nut | Green | On-Off | 85 °C | -25 °C | 12.2 mm Dia | Green LED | Concave (Curved) - Illuminated |

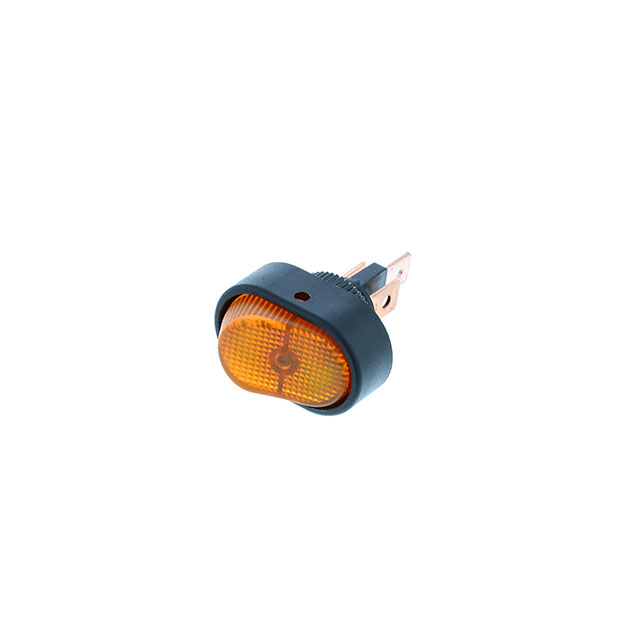

 Switch Components | 6000 Cycles | 10000 Steps | SPST | 12 VDC | Quick Connect - 0.250" (6.3mm) | No Marking | 12 V | Panel Mount Threaded Body with Nut | Amber | On-Off | 85 °C | -25 °C | 12.2 mm Dia | Amber LED | Concave (Curved) - Illuminated |
