YB01 Series

Catalog

INCAND PANEL INDICATOR WHITE 12V

Part	Lens Style	Type	Panel Cutout Shape	Current	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage	Lamp Color	Lens Transparency	Lens Color	Lens Size	Ratings	Current [custom]	Current [custom]	Voltage
NKK Switches YB01WKW01-12-BB	Square with Flat Top	Incandescent	Round	60 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	12 V	White	Diffused	White	15 mm
NKK Switches YB01KW01-12-JF	Square with Flat Top	Incandescent	Round	60 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	12 V	Green	Diffused	Green	15 mm	AC
NKK Switches YB01KW01-6F-JB	Square with Flat Top	LED	Round	20 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	3.3 V	Green	Diffused	White	15 mm
NKK Switches YB01WKW01-5D-JD	Square with Flat Top	LED	Round	40 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	2 V	Amber	Diffused	Amber	15 mm
NKK Switches YB01WKW01-12-CB	Square with Flat Top	Incandescent	Round	20 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	12 V	Red	Diffused	Red	15 mm	AC
NKK Switches YB01WKW01-5F-JF	Square with Flat Top	LED	Round	40 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	2 V	Green	Clear	Green	15 mm
NKK Switches YB01KW01-5C-JB	Square with Flat Top	LED	Round	40 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	1.9 V	Red	Diffused	White	15 mm
NKK Switches YB01WKW01-6G-JB	Square with Flat Top	LED	Round	30 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	3.3 V	Blue	Diffused	White	15 mm
NKK Switches YB01KW01-5D12-JB	Square with Flat Top	LED	Round	20 mA	Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in	12 V	Amber	Clear	White	15 mm

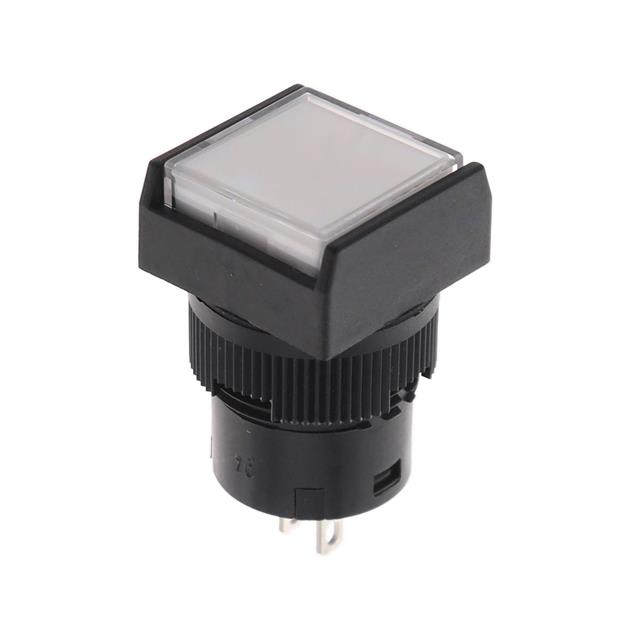

NKK Switches YB01WKW01-2CF24-JB	Square with Flat Top	LED	Round		Quick Connect Solder Lug	0.11 in	2.8 mm	16 mm	0.63 in		Green Red	Diffused	White	15 mm	AC	10 mA	10 mA	24V Green 24V Red
