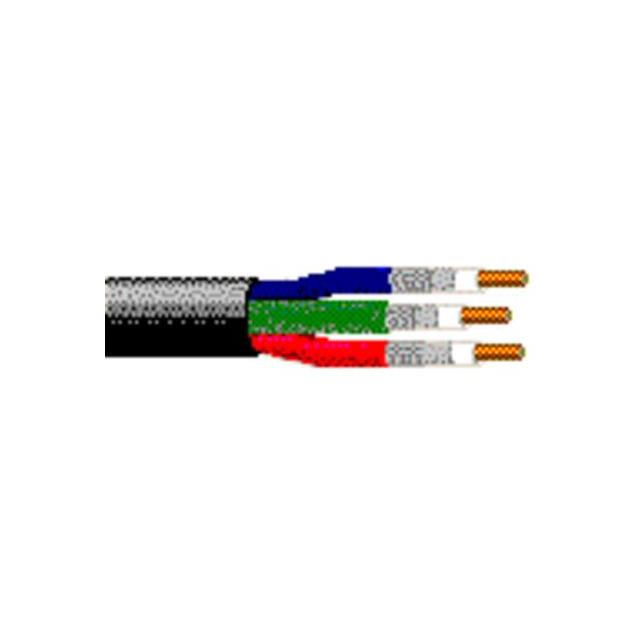

7794A Series
Manufacturer: Belden Inc.
Beta
⌘K
3 #20 PE/GIFHDPE SH FRPVC PVC
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Dielectric Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Impedance | Usage | Cable Type | Jacket Color | Jacket (Insulation) Material | Length [x] | Length [x] | Conductor Strand | Shield Type | Cable Group | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 95 % 100 % | 75 ░C | -35 °C | Copper Bare | Foam High Density Polyethylene (FHDPE) | 83 | 0.145 in | 3.68 mm | 75 Ohms | RF Signal | Coaxial | Black | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Solid | Braid Foil | RG-59 | 20 AWG |
