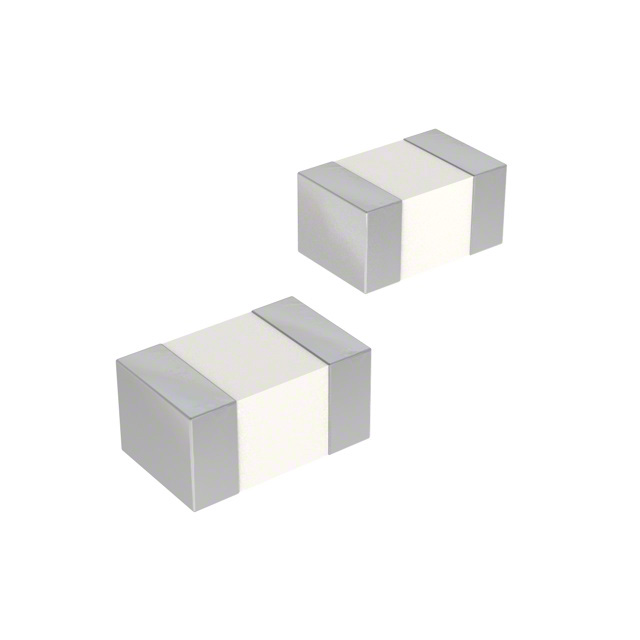

CI201210 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 8.2NH 300MA 280MOHM SM
| Part | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | DC Resistance (DCR) [Max] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Inductance Frequency - Test | Mounting Type | Q @ Freq | Frequency - Self Resonant | Supplier Device Package | Type | Tolerance | Material - Core | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 8.2 nH | 1.2 mm | 0.047 " | 0805 | 280 mOhm | 0.3 A | 100 °C | -25 °C | Unshielded | 100 MHz | Surface Mount | 10 100 MHz | 2.2 GHz | 0805 (2012 Metric) | Multilayer | 5 % | Ceramic | 2 mm | 1.25 mm | 0.049 " | 0.079 in |
