MPX53 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
SENSOR 7.25PSID .06V
| Part | Termination Style | Accuracy Range Maximum | Accuracy Range Minimum | Mounting Type | Port Style | Output Type | Operating Temperature (Max) | Operating Temperature (Min) | Pressure Type | Operating Pressure | Package / Case | Maximum Pressure | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Applications | Output Voltage (Min) | Output Voltage (Max) | Port Diameter | Port Gender | Port Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

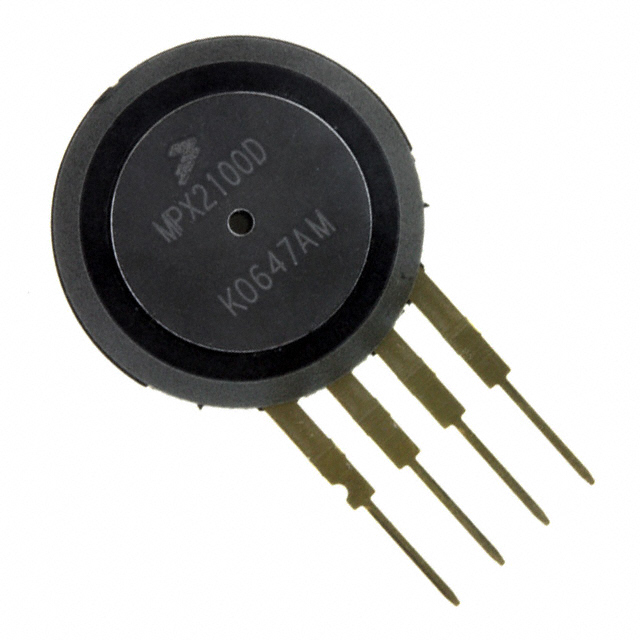

 NXP USA Inc. | PC Pin | 0.4 % | -0.6 % | Through Hole | No Port | Wheatstone Bridge | 125 °C | -40 °C | Differential | 7.25 PSI | 4-SIP Module | 25.38 PSI | 6 V | 3 V | Board Mount | 0 V | 60 mV | |||

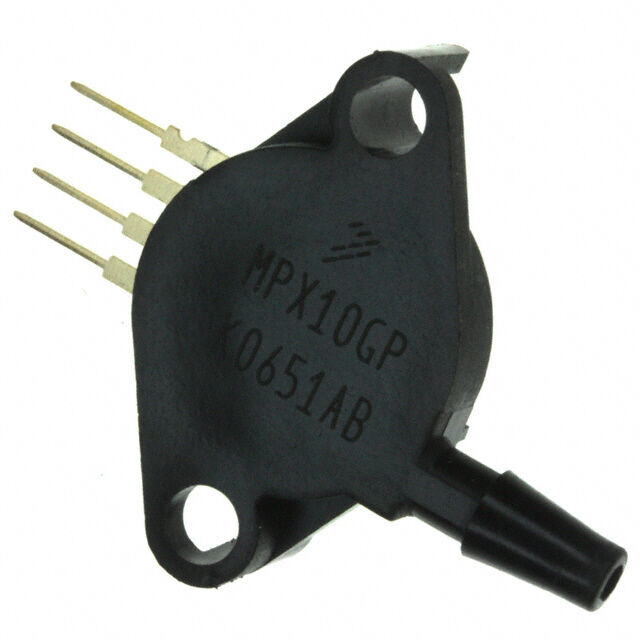

 NXP USA Inc. | PC Pin | 0.4 % | -0.6 % | Through Hole | Barbed | Wheatstone Bridge | 125 °C | -40 °C | Vented Gauge | 7.25 PSI | 4-SIP Module | 25.38 PSI | 6 V | 3 V | Board Mount | 0 V | 60 mV | 0.19 " | Male | Tube |

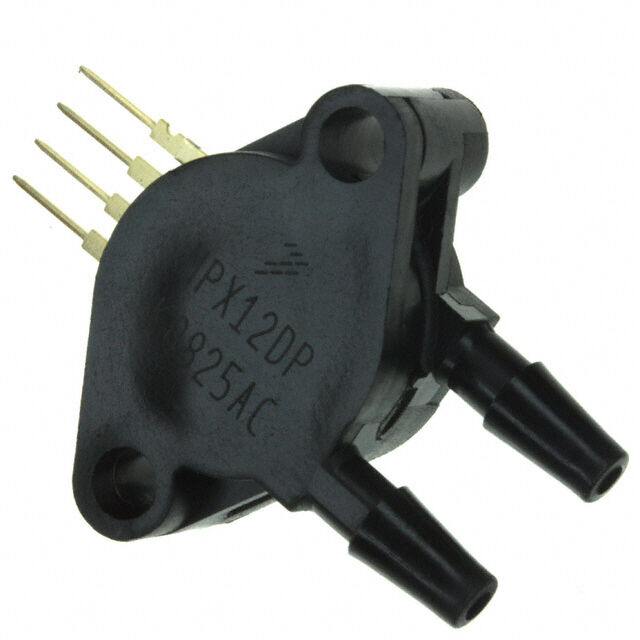

 NXP USA Inc. | PC Pin | 0.4 % | -0.6 % | Through Hole | Barbed | Wheatstone Bridge | 125 °C | -40 °C | Differential | 7.25 PSI | 4-SIP Module | 25.38 PSI | 6 V | 3 V | Board Mount | 0 V | 60 mV | 0.19 " | Male | Dual Tube |
