20CJQ Series

Catalog

DIODE ARR SCHOTT 45V 2A SOT223

Part	Mounting Type	Technology	Current - Average Rectified (Io) (per Diode)	Package / Case	Speed	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Diode Configuration	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - Forward (Vf) (Max) @ If
SMC Diode Solutions 20CJQ045	Surface Mount	Schottky	2 A	TO-261-4 TO-261AA	200 mA 500 ns	SOT-223	-55 °C	150 °C	100 µA	45 V	1 Pair Common Cathode	700 mV

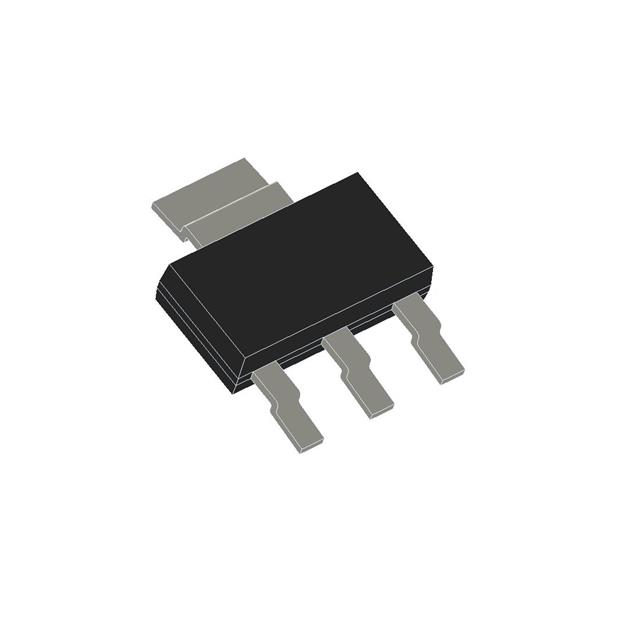

SMC Diode Solutions 20CJQ030	Surface Mount	Schottky	2 A	TO-261-4 TO-261AA	200 mA 500 ns	SOT-223	-55 °C	150 °C	100 µA	30 V	1 Pair Common Cathode		690 mV
SMC Diode Solutions 20CJQ060	Surface Mount	Schottky		TO-261-4 TO-261AA	200 mA 500 ns	SOT-223	-55 °C	150 °C	100 µA	60 V	1 Pair Common Cathode	700 mV
SMC Diode Solutions 20CJQ100	Surface Mount	Schottky		TO-261-4 TO-261AA	200 mA 500 ns	SOT-223	-55 °C	150 °C	500 µA	100 V	1 Pair Common Cathode	850 mV
