SG73P1J Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

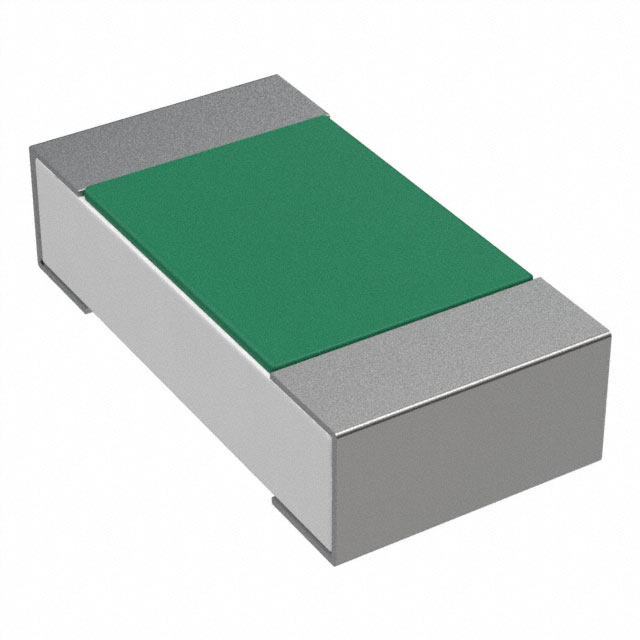

RES 160 OHM 2% 1/3W 0603

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Features	Tolerance	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)	Power (Watts)	Package / Case	Package / Case	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Composition	Resistance
KOA Speer Electronics, Inc. SG73P1JRTTD161G	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	2 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	160 Ohms
KOA Speer Electronics, Inc. SG73P1JRTTD1200D	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.5 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	120 Ohms
KOA Speer Electronics, Inc. SG73P1JRTTD57R6F	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	1 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	57.6 Ohms
KOA Speer Electronics, Inc. SG73P1JTTD1241F	155 C	-55 C	AEC-Q200	Automotive AEC-Q200 Pulse Withstanding	1 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	1.24 kOhms
KOA Speer Electronics, Inc. SG73P1JRTTD1301F	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	1 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	1.3 kOhms
KOA Speer Electronics, Inc. SG73P1JRTTD2801D	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.5 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	2.8 kOhms
KOA Speer Electronics, Inc. SG73P1JRTTD3650D	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.5 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film
KOA Speer Electronics, Inc. SG73P1JTTD1132D	155 C	-55 C	AEC-Q200	Automotive AEC-Q200 Pulse Withstanding	0.5 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	11.3 kOhms
KOA Speer Electronics, Inc. SG73P1JTTD1780F	155 C	-55 C	AEC-Q200	Automotive AEC-Q200 Pulse Withstanding	1 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	178 Ohms
KOA Speer Electronics, Inc. SG73P1JRTTD9101D	155 C	-55 C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	0.5 %	100 ppm/°C	0.55 mm	0.022 in	0.3333333333333333 W	0.333 W	1608 Metric	0603	2	0.031 in	1.6 mm	0.8 mm	0.063 "	Thick Film	9.1 kOhms
