2842143 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

20P,2MM,BRK HDR,DRVT,SMD,0.38AU,

Part	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Fastening Type	Features	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Contact Material	Contact Finish - Post	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Termination	Contact Shape	Number of Positions
TE Connectivity Raychem Cable Protection 1-2842143-0	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	20	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square

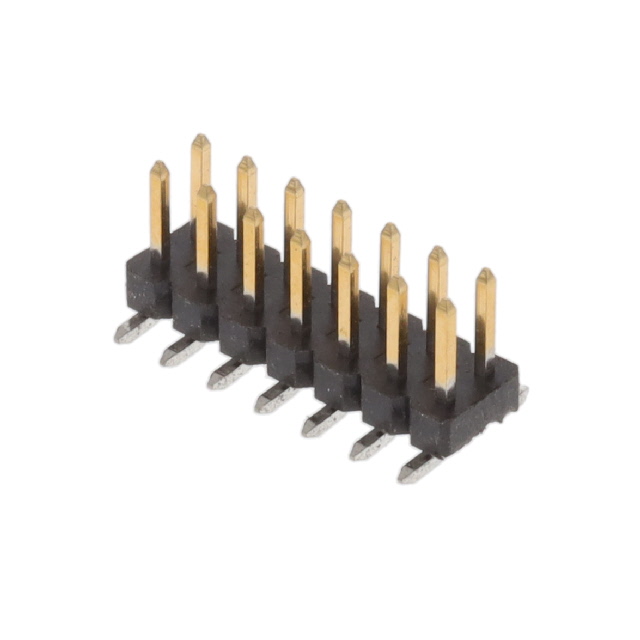

TE Connectivity Raychem Cable Protection 2842143-7	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	14	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square
TE Connectivity Raychem Cable Protection 2842143-8	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold		UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square	16
TE Connectivity Raychem Cable Protection 2842143-4	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	8	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square

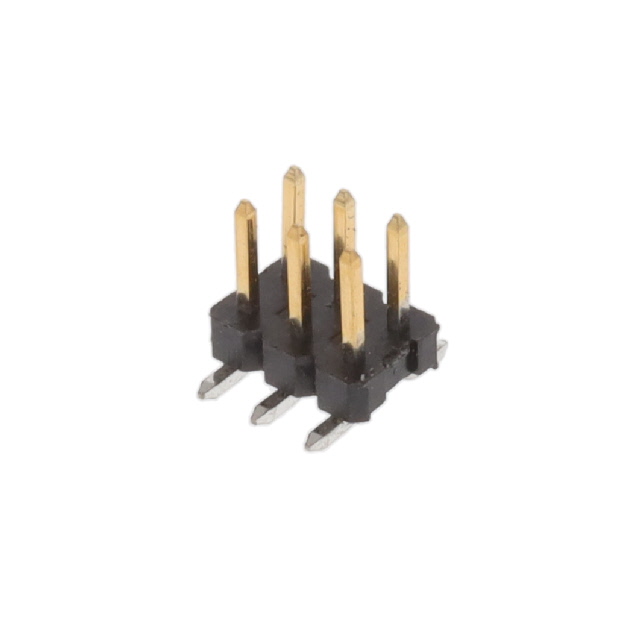

TE Connectivity Raychem Cable Protection 2842143-3	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	6	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square

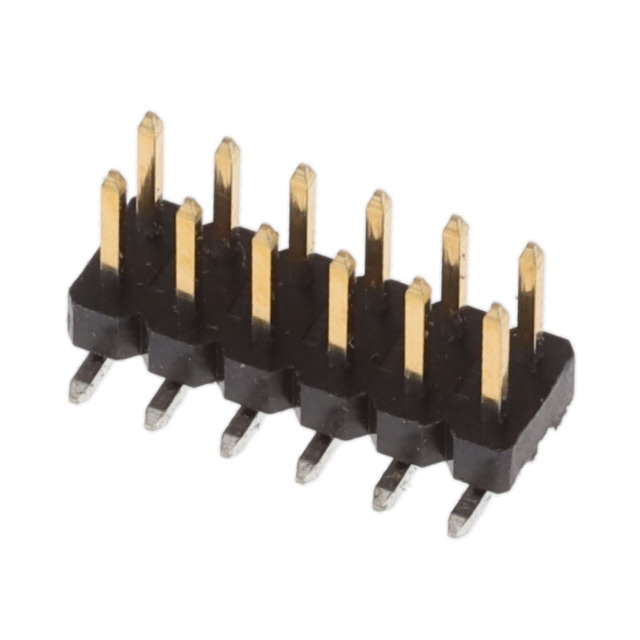

TE Connectivity Raychem Cable Protection 2842143-6	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	12	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square

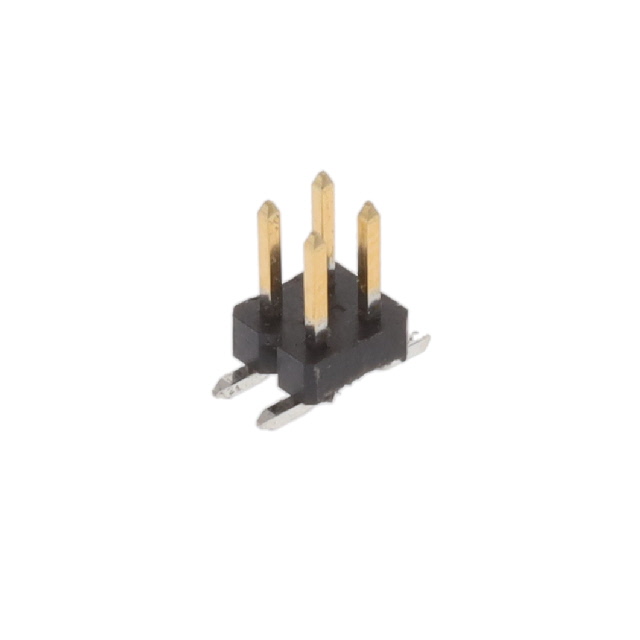

TE Connectivity Raychem Cable Protection 2842143-2	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	4	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square
TE Connectivity Raychem Cable Protection 2842143-5	All	2 çm	78.7 çin	Surface Mount	Push-Pull	Pick and Place	0.079 in	2 mm	Breakaway Header	Copper Alloy	Tin	Thermoplastic	1.5 mm	0.059 "	Gold	10	UL94 V-0	125 °C	-40 °C	2	Black	0.079 in	2 mm	Unshrouded	Male Pin	125 VAC	15 µin	0.38 µm	4 mm	0.157 in	2 A	Solder	Square
