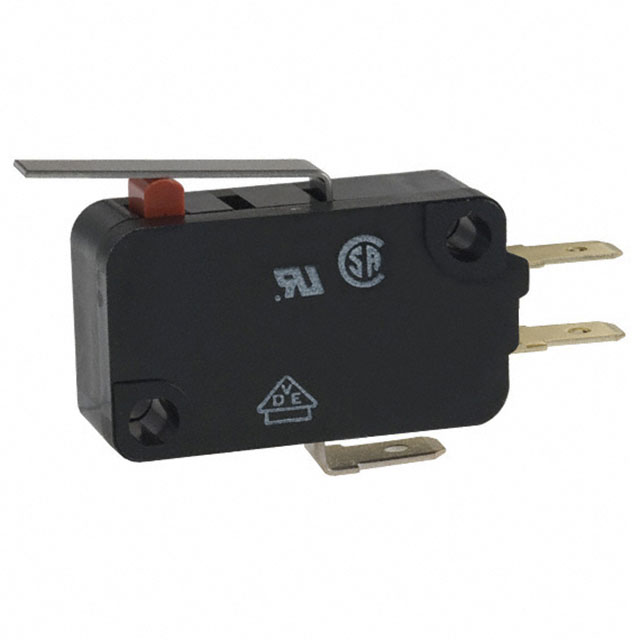

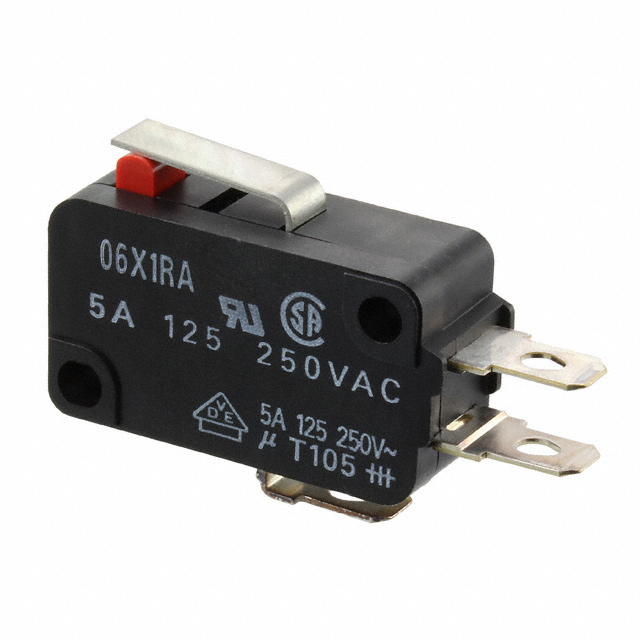

VX-51 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Operating Force | Mechanical Life | Termination Style | Termination Style | Termination Style | Electrical Life | Mounting Type | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Overtravel [custom] | Overtravel [custom] | Pretravel | Pretravel | Differential Travel | Differential Travel | Ingress Protection | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | Operating Position | Operating Position | Circuit | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 50 gf | 50000000 Cycles | 4.7 mm | 0.187 in | Solder Quick Connect | 500000 Cycles | Chassis Mount | Lever Straight | 5 A | 125 V | On-Mom | 0.03 " | 0.76 mm | 0.063 in | 1.6 mm | 0.5 mm | 0.02 in | IP40 | 30 V | -25 °C | 80 °C | 0.6 in | 15.2 mm | SPDT | 4.079 gf |
 Omron Electronics Inc-EMC Div | 50 gf | 50000000 Cycles | Quick Connect | 500000 Cycles | Chassis Mount | Lever Straight | 5 A | 125 V | On-Mom | 0.03 " | 0.76 mm | 0.063 in | 1.6 mm | 0.5 mm | 0.02 in | IP40 | 30 V | -25 °C | 80 °C | 0.6 in | 15.2 mm | SPDT | 4.079 gf |
