KAE06 Series

Manufacturer: E-Switch

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Electrical Life	Length [x]	Length [x]	Height Above Board	Height Above Board	Contact Material	Pitch	Pitch	Mounting Type	Contact Finish	Actuator Level	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Actuator Type	Current Rating (Amps)	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]

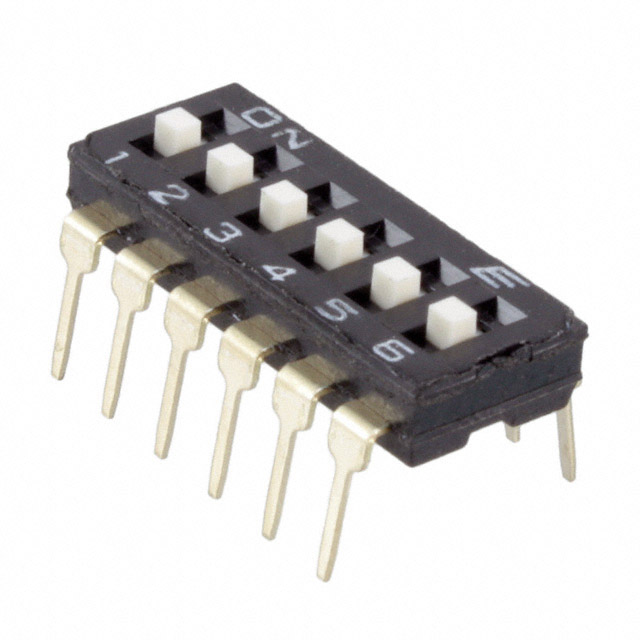

E-Switch KAE06LAGT	2000 Cycles	2000 Steps	0.641 in	16.28 mm	0.169 in	4.3 mm	Copper	2.54 mm	0.1 "	Through Hole	Gold	Raised	24 VDC	85 °C	-20 ░C	SPST	PC Pin	Slide (Standard)	25 mA	6
E-Switch KAE06TAGT	2000 Cycles	2000 Steps	0.641 in	16.28 mm			Copper	2.54 mm	0.1 "	Through Hole	Gold	Flush Recessed	24 VDC	85 °C	-20 ░C	SPST	PC Pin	Slide (Standard)	25 mA	6	Tape Seal	0.142 in	3.6 mm

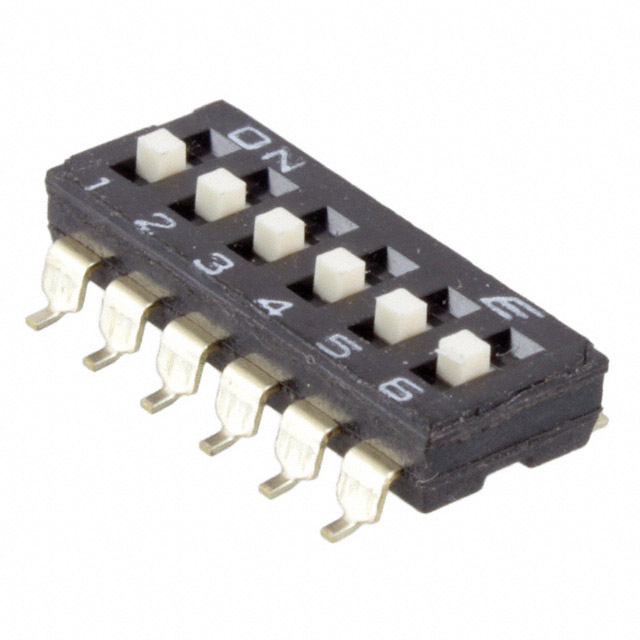

E-Switch KAE06LGGT	2000 Cycles	2000 Steps	0.641 in	16.28 mm			Copper	2.54 mm	0.1 "	Surface Mount	Gold	Raised	24 VDC	85 °C	-20 ░C	SPST	Gull Wing	Slide (Standard)	25 mA	6		0.175 in	4.45 mm
E-Switch KAE06SGGR	2000 Cycles	2000 Steps	0.641 in	16.28 mm			Copper	2.54 mm	0.1 "	Surface Mount	Gold	Flush Recessed	24 VDC	85 °C	-20 ░C	SPST	Gull Wing	Slide (Standard)	25 mA	6		0.148 in	3.75 mm
