SAV4 Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES ANTI-VANDAL, SPDT, ON-(ON), PANEL MOUNT, FRONT, SILVER, LED, BLUE, IP67
| Part | Panel Cutout Dimensions [diameter] | Illumination Voltage (Nominal) | Type | Switch Function | Termination Style | Ingress Protection | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Circuit | Mounting Type | Illumination Type, Color | Actuator Type | Current Rating (Amps) | Electrical Life | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

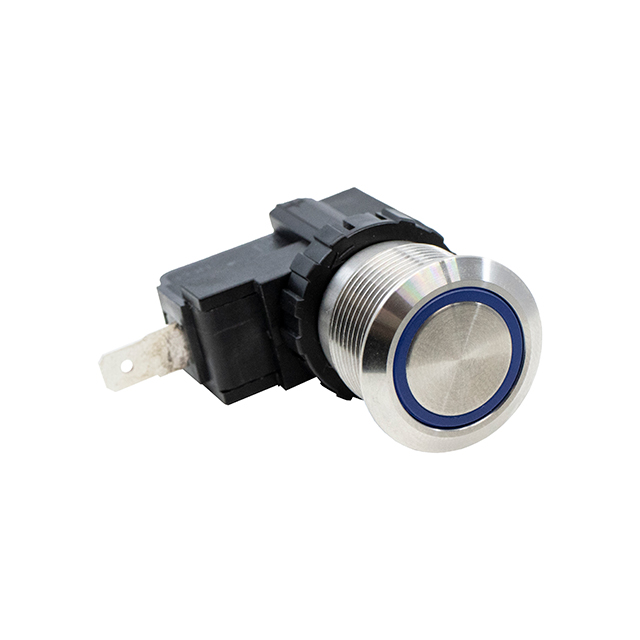

 E-Switch | 19.2 mm | 3 VDC | Anti-Vandal Illuminated | On-Mom | Quick Connect | IP67 - Dust Tight Waterproof | 125 V | 85 °C | -25 °C | Silver | SPDT | Panel Mount Front | Blue LED | Button Flush Round | 15 A | ||

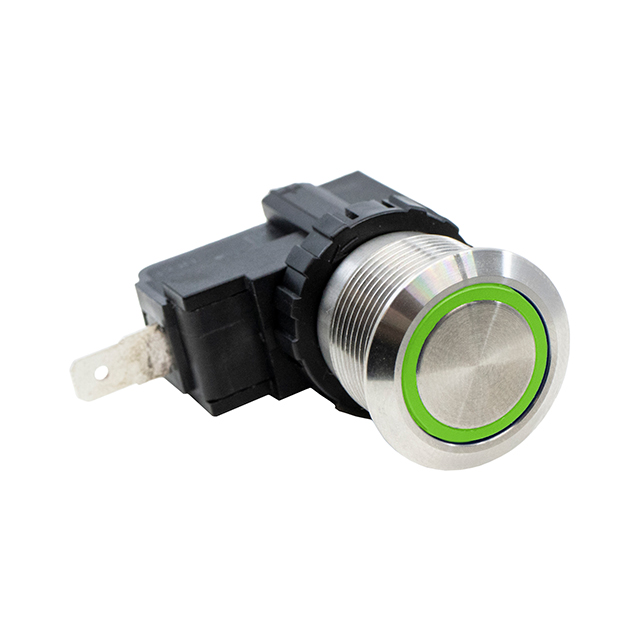

 E-Switch | 19.2 mm | 3 VDC | Anti-Vandal Illuminated | On-Mom | Quick Connect | IP67 - Dust Tight Waterproof | 125 V | 85 °C | -25 °C | Silver | SPDT | Panel Mount Front | Green LED | Button Flush Round | 15 A | 10000 Cycles | No Marking |
 E-Switch | 19.2 mm | 3 VDC | Anti-Vandal Illuminated | On-On | Quick Connect | IP67 - Dust Tight Waterproof | 125 V | 85 °C | -25 °C | Silver | SPDT | Panel Mount Front | Green LED | Button Flush Round | 15 A | 10000 Cycles | No Marking |
 E-Switch | 19.2 mm | 12 VDC | Anti-Vandal Illuminated | On-Mom | Quick Connect | IP67 - Dust Tight Waterproof | 125 V | 85 °C | -25 °C | Silver | SPDT | Panel Mount Front | Blue LED | Button Flush Round | 15 A | 10000 Cycles | No Marking |
