79043 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

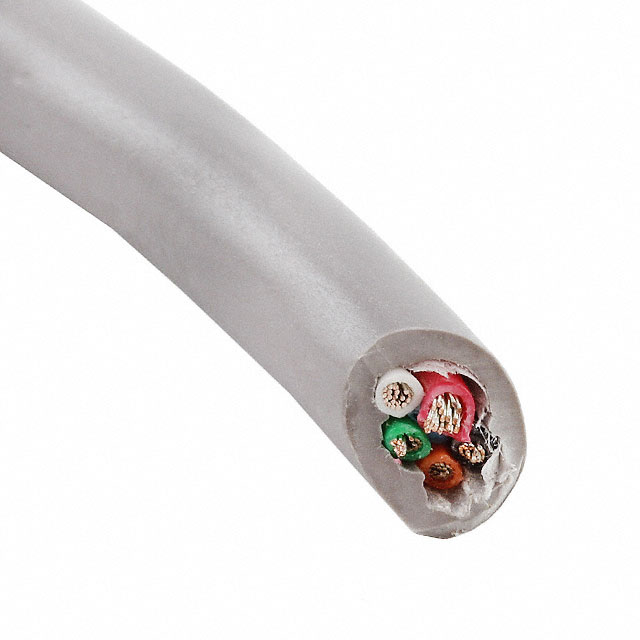

MULTICONDUCTOR CABLE, ECOGEN™ ECOFLEX®, UNSHIELDED, 5 CONDUCTOR, 10 AWG, 5.32 MM², 100 FT, 30.5 M
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Number of Conductors | Wire Gauge | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.465 in | 11.81 mm | ISO 10993 | Polyphenylene Ether Modified (mPPE) | 105 | 30 | 600 V | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Slate | Copper Tinned | 100 ft | 30.5 m | 0.035 in | 0.889 mm | Biological Compatibility | 5 | 10 AWG | Multi-Conductor | ||
ALPHA WIRE | 0.465 in | 11.81 mm | ISO 10993 | Polyphenylene Ether Modified (mPPE) | 105 | 30 | 600 V | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Slate | Copper Tinned | 0.035 in | 0.889 mm | Biological Compatibility | 5 | 10 AWG | Multi-Conductor | ||||
 ALPHA WIRE | 0.465 in | 11.81 mm | ISO 10993 | Polyphenylene Ether Modified (mPPE) | 105 | 30 | 600 V | Polyphenylene Ether Modified (mPPE) | -40 C | 105 ░C | Slate | Copper Tinned | 0.035 in | 0.889 mm | Biological Compatibility | 5 | 10 AWG | Multi-Conductor | 304.8 m | 1000 ft |
