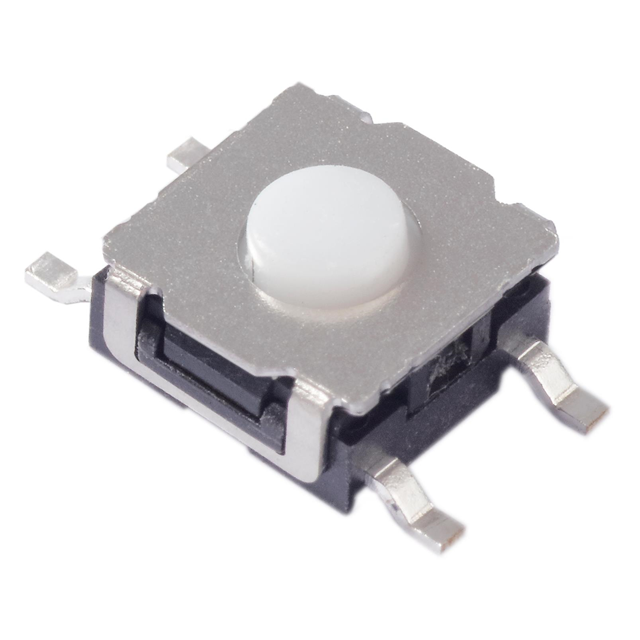

222JMVA Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Mechanical Life | Actuator Material | Switch Travel | Actuator Type | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Contact Rating @ Voltage | Features | Outline [x] | Outline [y] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Operating Force | Illumination | Ingress Protection | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 500000 Cycles | Silicone Rubber | 0.35 mm | Standard | Top Actuated | 3.5 mm | 0.05 A 32 VDC | Tactile Feedback | 6.2 mm | 6.2 mm | 85 °C | -40 C | Surface Mount | SPST-NO | 0.2 kgf | Non-Illuminated | IP67 - Dust Tight Waterproof | Off-Mom | Gull Wing |
