74HCT1G08 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

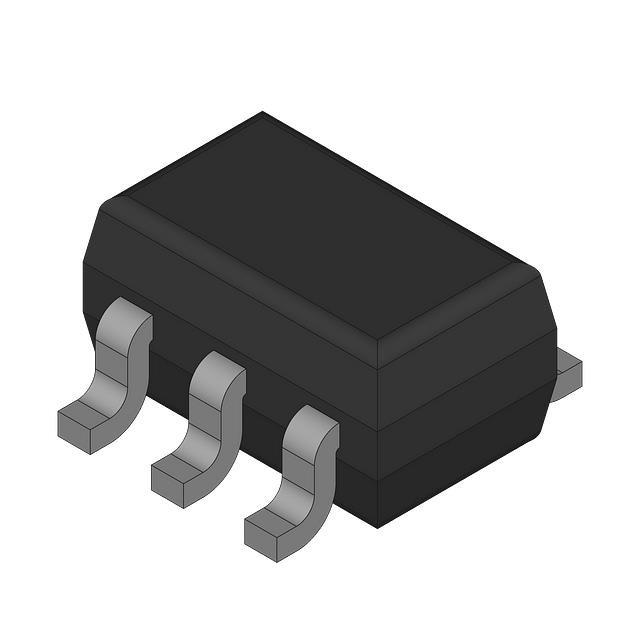

IC GATE AND 1CH 2-INP 5TSSOP
| Part | Max Propagation Delay | Max CL | Package / Case | Number of Circuits | Operating Temperature (Max) | Operating Temperature (Min) | Input Logic Level - High | Input Logic Level - Low (Voltage) | Mounting Type | Package Name | Logic Type | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Current - Quiescent (Max) | Number of Inputs | Current - Output High | Current - Output Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 27 ns | 50 pF | 5-TSSOP SC-70-5 SOT-353 | 1 | 125 °C | -40 °C | 2 V | 0.8 V | Surface Mount | 5-TSSOP | AND Gate | 5.5 V | 4.5 V | 20 µA | 2 | 2 mA | 2 mA |
