CFS-0202 Series

Catalog

DIP SWITCH, DPST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Length [x]	Length [x]	Body Material	Electrical Life	Current Rating (Amps)	Actuator Type	Circuit	Number of Positions	Mounting Type	Actuator Level	Contact Finish	Height Above Board	Height Above Board	Termination Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Material	Height Above Board [z]	Height Above Board [z]
Nidec Components Corporation CFS-0202TB	6.5 mm	0.256 in	Polyphenylene Sulfide (PPS)	1000 Cycles	100 mA	Slide (Standard)	SPST	2	Surface Mount	Raised	Gold	0.169 in	4.3 mm	Gull Wing	6 V	85 °C	-40 C	2.54 mm	0.1 "	Copper Alloy

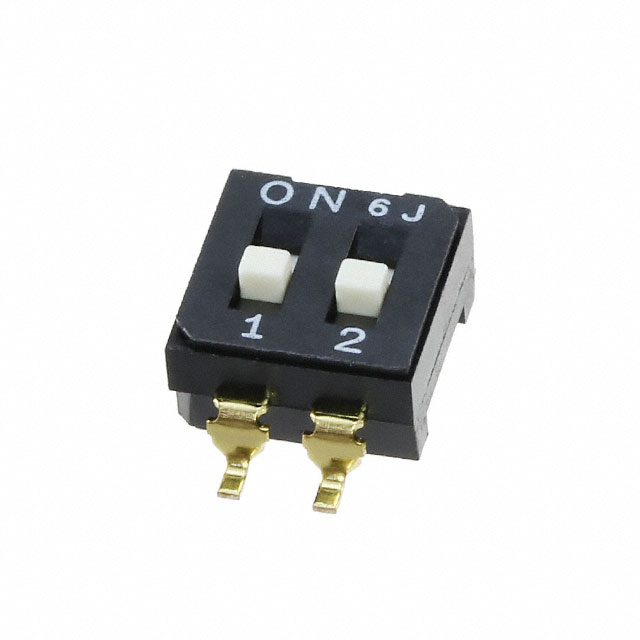

Nidec Components Corporation CFS-0202MB	6.5 mm	0.256 in	Polyphenylene Sulfide (PPS)	1000 Cycles	100 mA	Slide (Standard)	SPST	2	Surface Mount	Raised	Gold	0.169 in	4.3 mm	Gull Wing	6 V	85 °C	-40 C	2.54 mm	0.1 "	Copper Alloy
Nidec Components Corporation CFS-0202TA	6.5 mm	0.256 in	Polyphenylene Sulfide (PPS)	1000 Cycles	100 mA	Slide (Standard)	SPST	2	Surface Mount	Raised	Gold			J Lead	6 V	85 °C	-40 C	2.54 mm	0.1 "	Copper Alloy	0.177 in	4.5 mm
