M30-600 Series

Catalog

2 POS. MALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Part	Insulation Material	Number of Rows	Style	Contact Shape	Shrouding	Features	Contact Material	Connector Type	Termination	Current Rating (Amps)	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Mounting Type	Voltage Rating	Contact Type	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]
Harwin Inc. M30-6000246R	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	2	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin
Harwin Inc. M30-6000746	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	7	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin
Harwin Inc. M30-6000646	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	6	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin
Harwin Inc. M30-6001546	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	15	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin

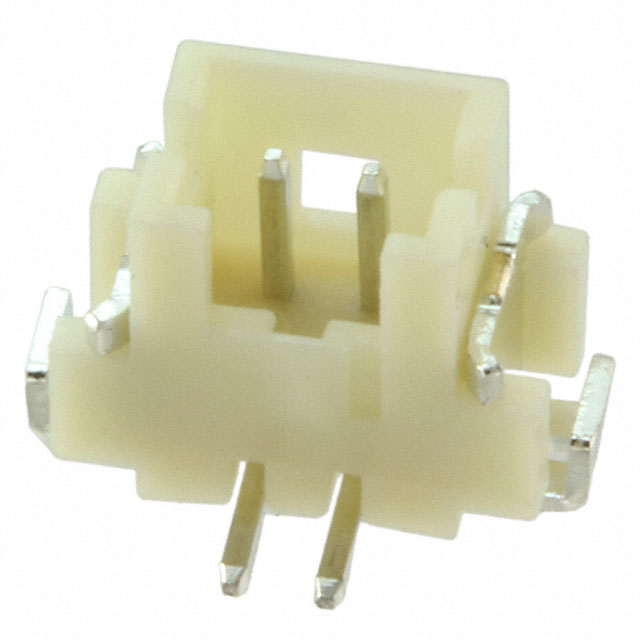

Harwin Inc. M30-6000246	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	2	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin

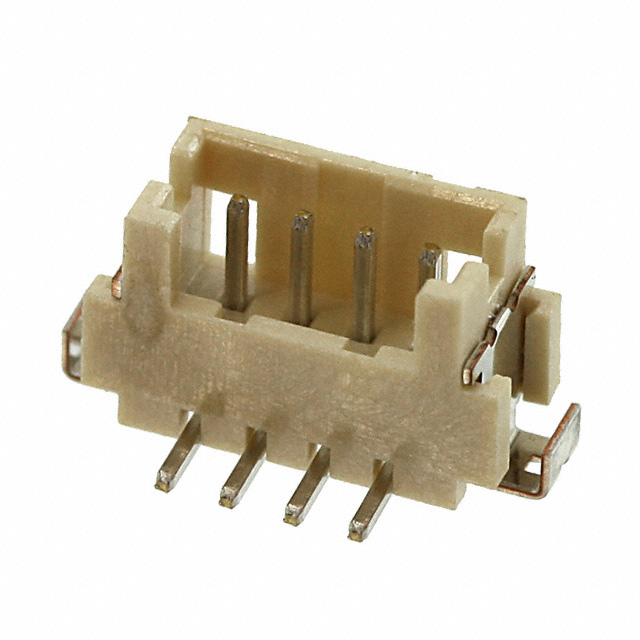

Harwin Inc. M30-6000446R	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	4	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin

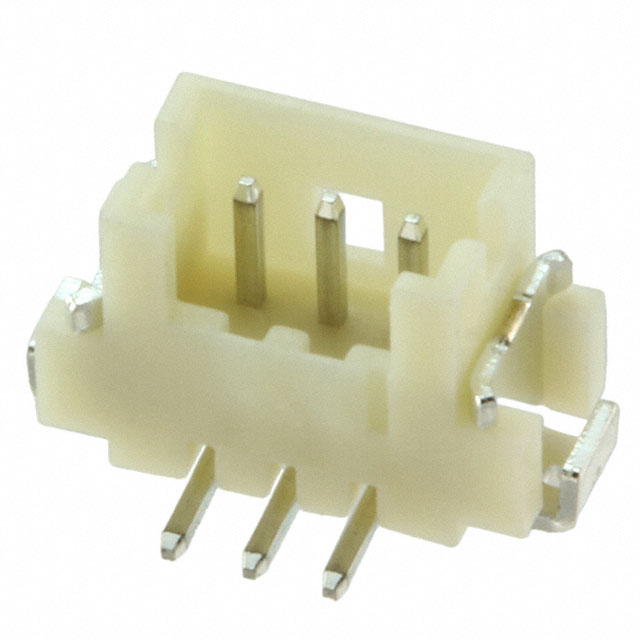

Harwin Inc. M30-6000346	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in		85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin
Harwin Inc. M30-6000546	Nylon 6T Polyamide (PA6T)	1	Board to Cable/Wire	Square	Shrouded - 4 Wall	Board Guide Solder Retention	Brass	Header	Solder	1 A	4.8 mm	0.189 in	5	85 °C	-25 °C	All	Tin	Natural	0.049 in	1.25 mm	UL94 V-0	Surface Mount	150 VDC	Male Pin	Detent Lock	2.03 µm	80 µin
