V048T060 Series
Manufacturer: Vicor Corporation
Beta
⌘K

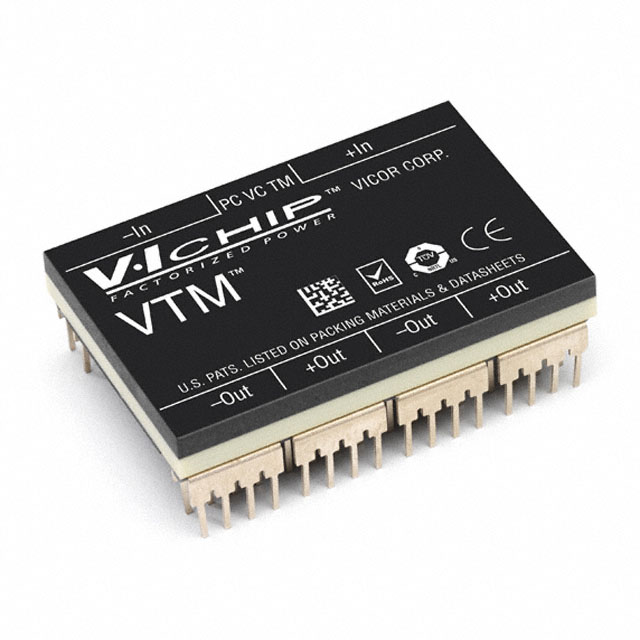

DC DC CONVERTER 6V 240W
| Part | Number of Outputs | Features | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Type | Applications | Current - Output (Max) [Max] | Mounting Type | Power (Watts) | Voltage - Output 1 [custom] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vicor Corporation | 1 | Remote On/Off | 2250 VDC | 55 V | Module | 125 °C | -40 C | 26 V | Voltage Transformation Module | ITE (Commercial) | 40 A | Through Hole | 240 Watts | 6 V | 0.87 in | 6.7 mm | 22 mm | 32.5 mm | 1.28 in | 0.26 in | 94.6 % |
 Vicor Corporation | 1 | Remote On/Off | 2250 VDC | 55 V | Module | 125 °C | -55 C | 26 V | Voltage Transformation Module | ITE (Commercial) | 40 A | Through Hole | 240 Watts | 6 V | 0.87 in | 6.7 mm | 22 mm | 32.5 mm | 1.28 in | 0.26 in | 94.6 % |
