TL3145 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Circuit	Actuator Orientation	Mounting Type	Contact Rating @ Voltage	Ingress Protection	Termination Style	Illumination	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Outline [x]	Outline [y]	Operating Force	Switch Function

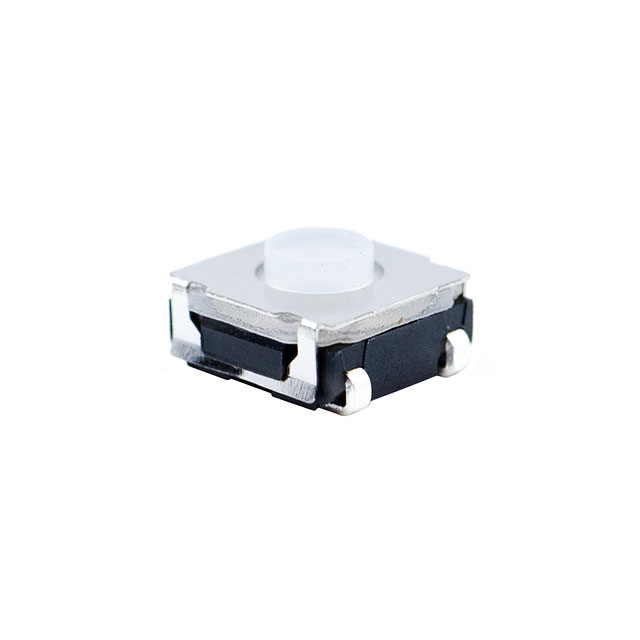

E-Switch TL3145AF180QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	3.5 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	180 gf	Off-Mom

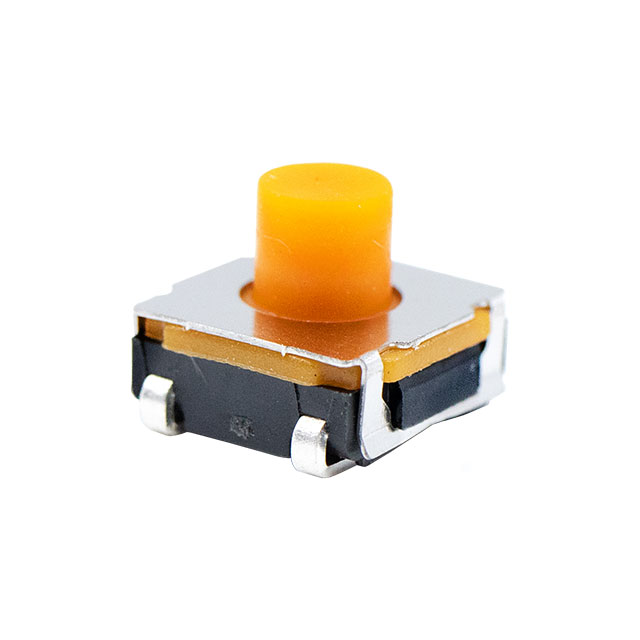

E-Switch TL3145BF350QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	5.2 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	350 gf	Off-Mom

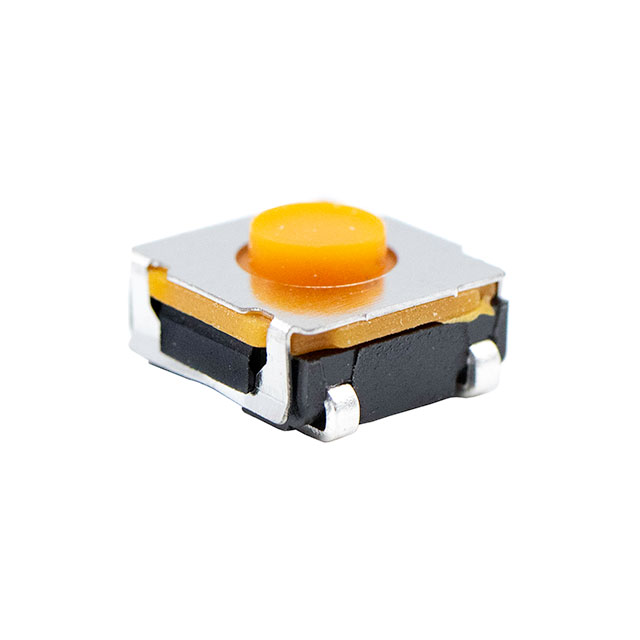

E-Switch TL3145AF350QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	3.5 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	350 gf	Off-Mom

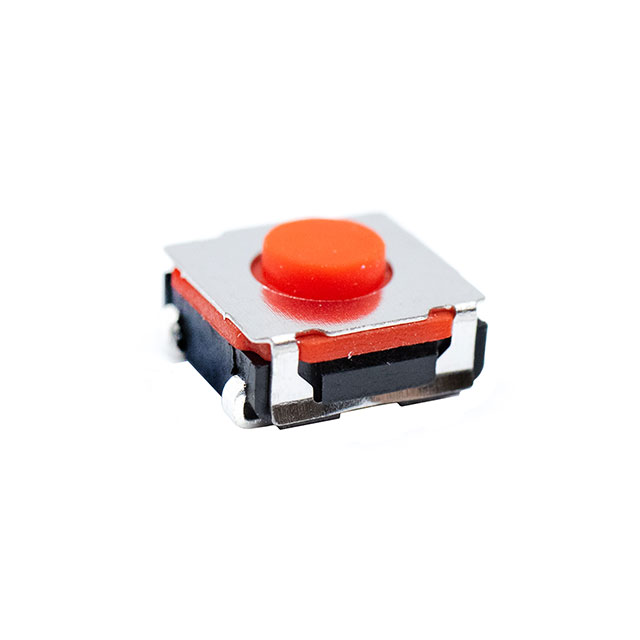

E-Switch TL3145AF260QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	3.5 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	260 gf	Off-Mom

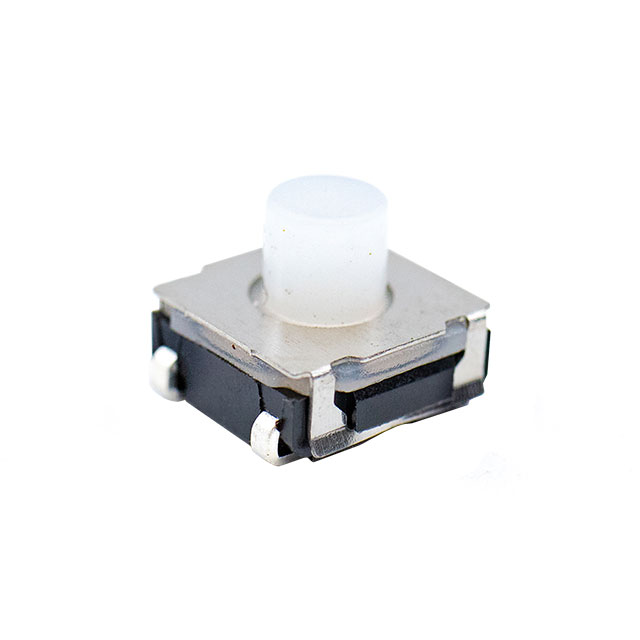

E-Switch TL3145BF180QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	5.2 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	180 gf	Off-Mom

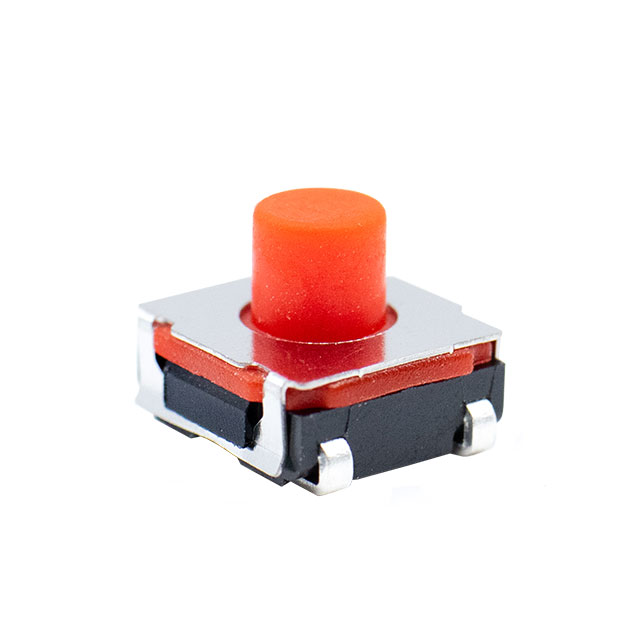

E-Switch TL3145BF260QJ	3000000 Cycles	0.15 mm	SPST-NO	Top Actuated	Surface Mount	0.05 A 12 VDC	IP67 - Dust Tight Waterproof	J Lead	Non-Illuminated	5.2 mm	85 °C	-40 C	Standard	6.45 mm	6.45 mm	260 gf	Off-Mom
