ESMC-M Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT SMT 12POS 1.27M

Part	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Insulation Material	Shrouding	Connector Type	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Number of Positions	Contact Shape	Termination	Contact Finish - Post	Number of Rows [custom]	Current Rating (Amps)	Insulation Color	Insulation Height

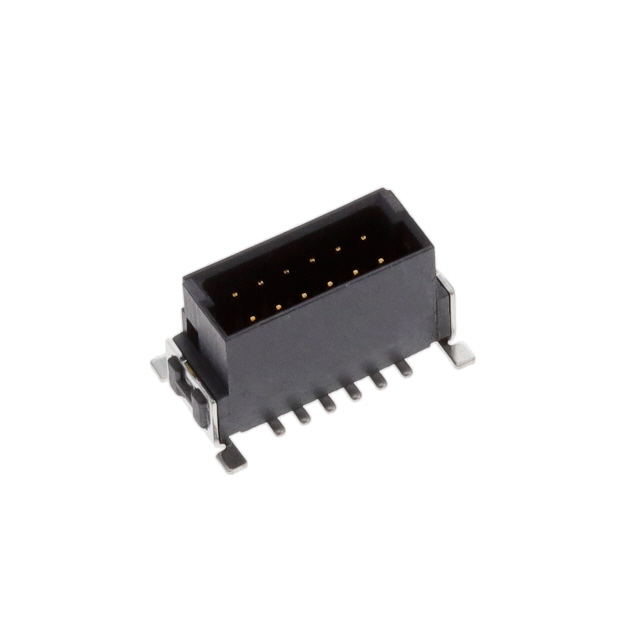

Adam Tech ESMC-M-12-SGS-SMT-A-PP-T/R	8 mm 10.8 mm 15.4 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.266 in	6.76 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	12	Square	Solder	Tin	2	1.2 A	Black

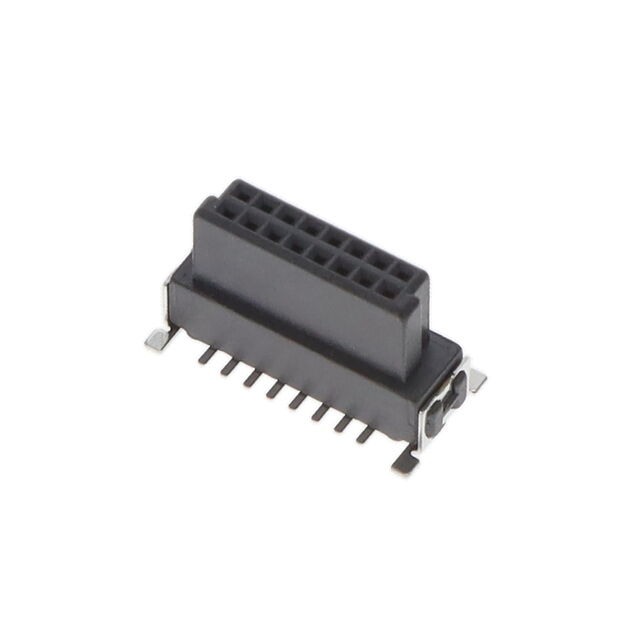

Adam Tech ESMC-M-16-SGS-SMT-A-PP-T/R	8 mm 10.8 mm 15.4 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.266 in	6.76 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	16	Square	Solder	Tin	2	1.2 A	Black
Adam Tech ESMC-M-50-SGS-SMT-B-PP-T/R	9.5 mm 12.3 mm 16.9 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.325 in	8.25 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	50	Square	Solder	Tin	2	1.2 A	Black

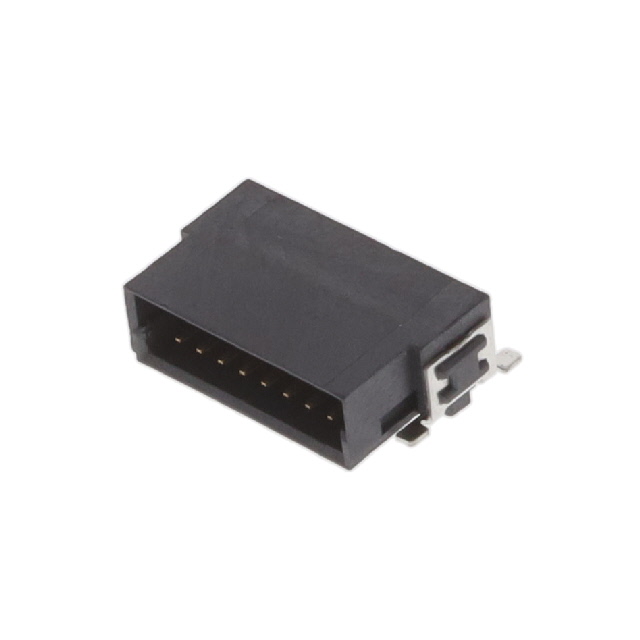

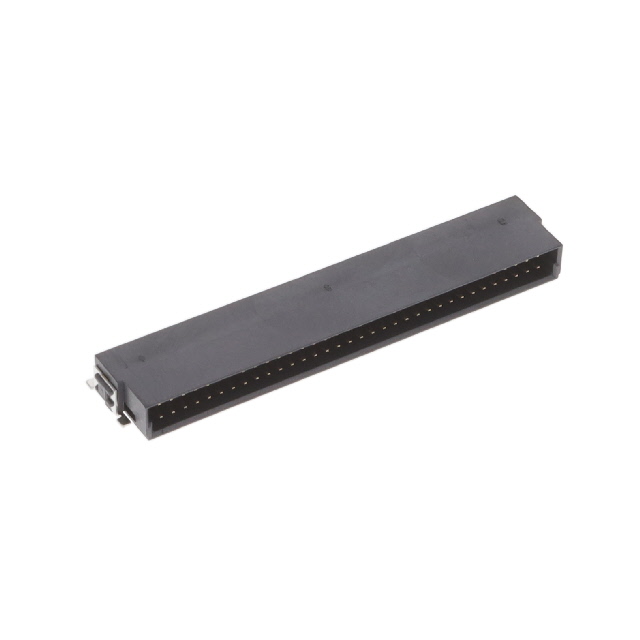

Adam Tech ESMC-M-16-SGR-SMT-T/R		0.05 in	1.27 mm	Board Guide Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.165 in	4.2 mm	Push-Pull	1.27 mm	0.05 in	Right Angle Surface Mount	All	UL94 V-0	16	Square	Solder	Tin	2	1.2 A	Black

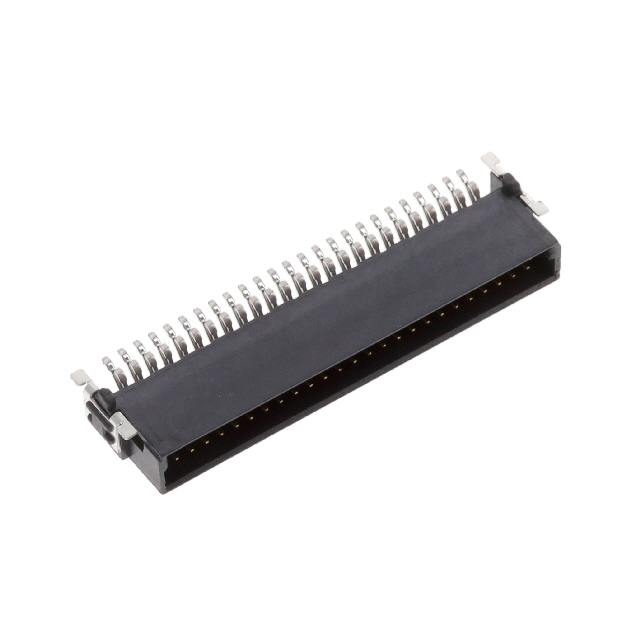

Adam Tech ESMC-M-50-SGR-SMT-T/R		0.05 in	1.27 mm	Board Guide Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.165 in	4.2 mm	Push-Pull	1.27 mm	0.05 in	Right Angle Surface Mount	All	UL94 V-0	50	Square	Solder	Tin	2	1.2 A	Black
Adam Tech ESMC-M-40-SGS-SMT-C-PP-T/R	11.1 mm 13.9 mm 18.5 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in		0.388 in	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	40	Square	Solder	Tin	2	1.2 A	Black	9.86 mm
Adam Tech ESMC-M-12-SGS-SMT-B-PP-T/R	9.5 mm 12.3 mm 16.9 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.325 in	8.25 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	12	Square	Solder	Tin	2	1.2 A	Black
Adam Tech ESMC-M-68-SGS-SMT-C-PP-T/R	11.1 mm 13.9 mm 18.5 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in		0.388 in	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	68 positions	Square	Solder	Tin	2	1.2 A	Black	9.86 mm

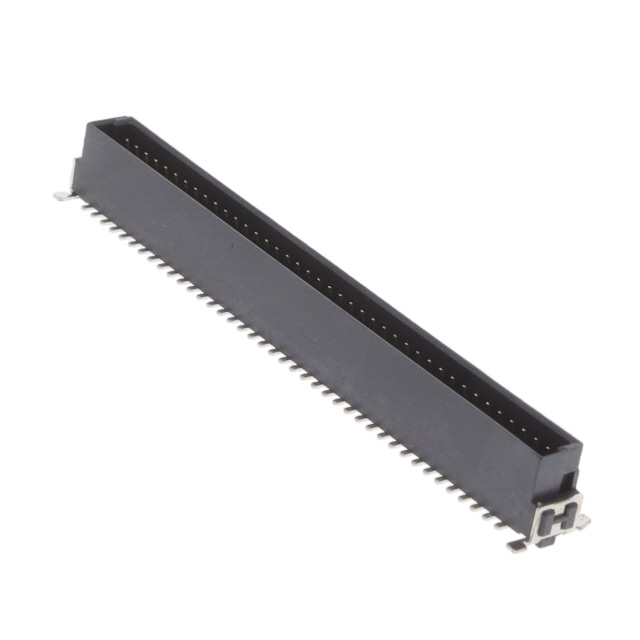

Adam Tech ESMC-M-80-SGS-SMT-A-PP-T/R	8 mm 10.8 mm 15.4 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.266 in	6.76 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	80	Square	Solder	Tin	2	1.2 A	Black
Adam Tech ESMC-M-26-SGS-SMT-B-PP-T/R	9.5 mm 12.3 mm 16.9 mm	0.05 in	1.27 mm	Board Guide Pick and Place Solder Retention	Flash	-55 C	125 °C	Gold	Phosphor Bronze	Thermoplastic	Shrouded - 4 Wall	Header	Male Pin	4 mm	0.157 in	0.325 in	8.25 mm	Push-Pull	1.27 mm	0.05 in	Surface Mount	All	UL94 V-0	26	Square	Solder	Tin	2	1.2 A	Black
