CCLB-1-3046 Series

Catalog

PMI DIA .319" (8.1MM) RED 24V

Part	Voltage	Termination Style	Current	Lens Color	Lamp Color	Lens Style	Ingress Protection	Panel Cutout Shape	Type	Viewing Angle	Millicandela Rating	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak
Visual Communications Company - VCC CCLB-1-3046-9910-I	1.9 V 24 V	Wire Leads - 6.000" (152.40mm)	20 mA	Red	Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	DC	0.32 "	8.1 mm	626 nm
Visual Communications Company - VCC CCLB-1-3046-9907-I	1.9 V 5 V	Wire Leads - 6.000" (152.40mm)	20 mA	Red	Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	DC	0.32 "	8.1 mm	626 nm

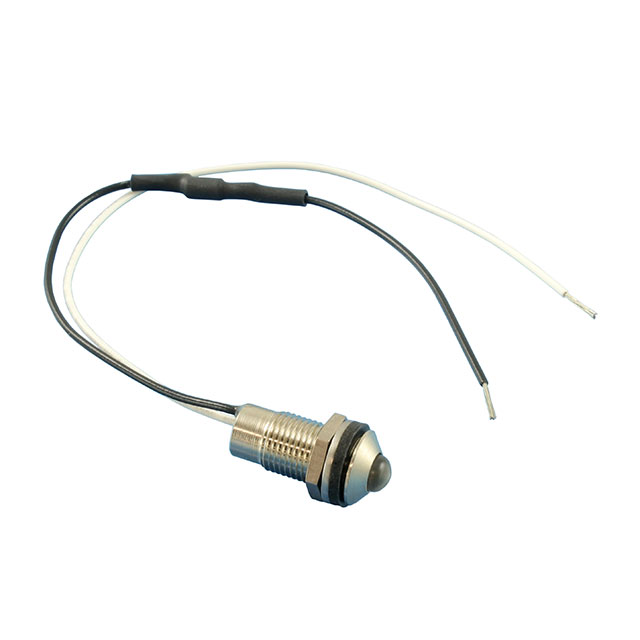

Visual Communications Company - VCC CCLB-1-3046-9920-I	120 V		20 mA		Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	AC	0.32 "	8.1 mm	626 nm

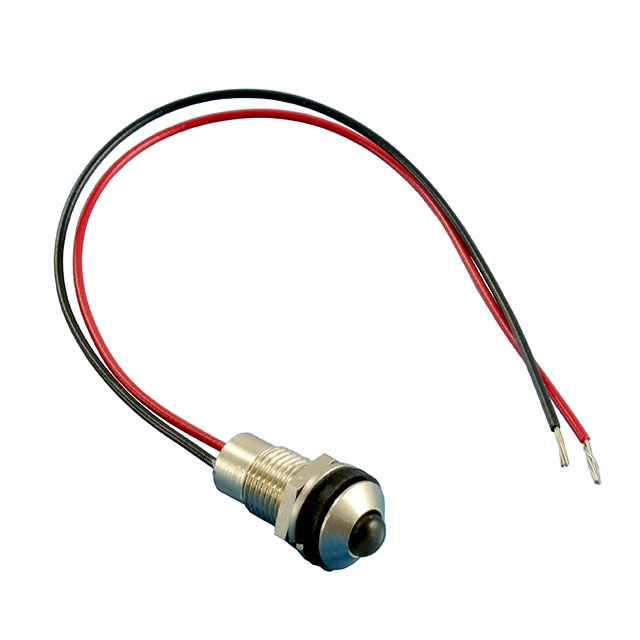

Visual Communications Company - VCC CCLB-1-3046-9908-I	12 V		20 mA		Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	DC	0.32 "	8.1 mm	626 nm
Visual Communications Company - VCC CCLB-1-3046-9912-I	1.9 V 48 V	Wire Leads - 6.000" (152.40mm)	20 mA	Red	Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	DC	0.32 "	8.1 mm	626 nm

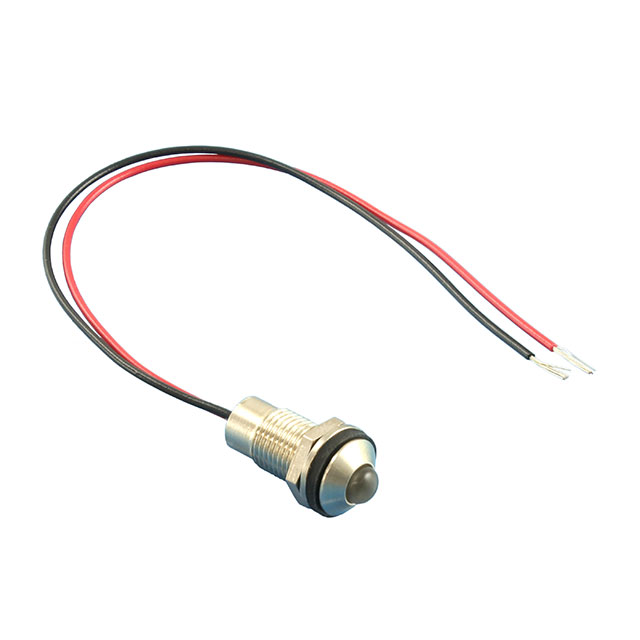

Visual Communications Company - VCC CCLB-1-3046-9923-I	28 V		20 mA		Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd	DC	0.32 "	8.1 mm	626 nm
Visual Communications Company - VCC CCLB-1-3046-0000-I	1.9 V	Wire Leads - 6.000" (152.40mm)	20 mA	Red	Red	Round with Domed Top	IP67	Round	LED	30 °	900 mcd		0.32 "	8.1 mm	626 nm
