AR 14-HZ Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN IC DIP SOCKET 14POS GOLD
| Part | Contact Resistance | Material Flammability Rating | Current Rating (Amps) | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Post | Pitch - Post | Contact Finish - Post | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material - Post | Termination | Contact Finish - Mating | Contact Material - Mating | Number of Positions or Pins (Grid) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

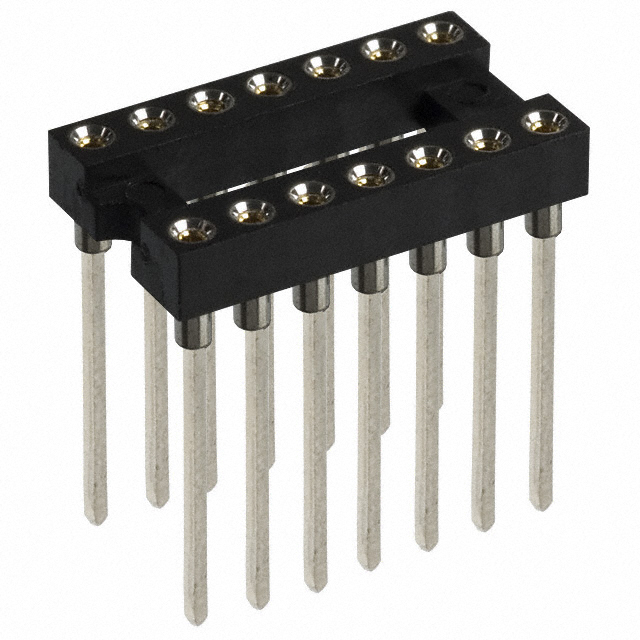

 Assmann WSW Components | 4 mOhm | UL94 V-0 | 3 A | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | 0.1 in | 2.54 mm | Tin | Polyester Thermoplastic | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | Wire Wrap | Gold | Beryllium Copper | 14 | Open Frame |

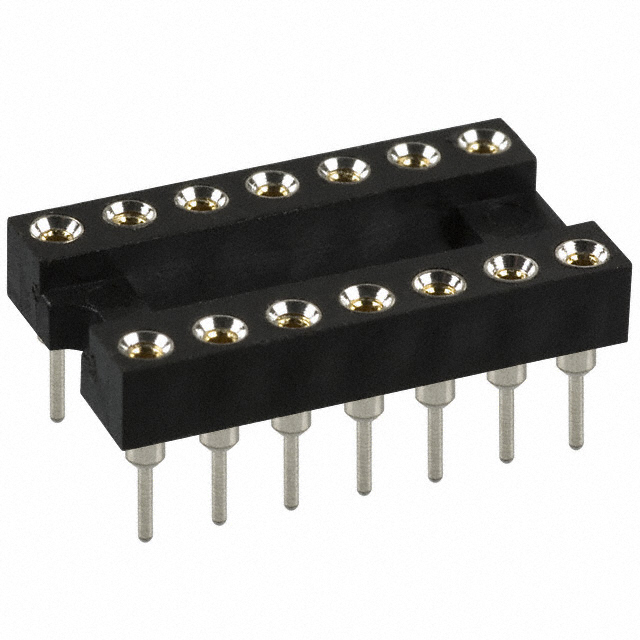

 Assmann WSW Components | 4 mOhm | UL94 V-0 | 3 A | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | 0.1 in | 2.54 mm | Tin | Polyester Thermoplastic | -40 C | 105 ░C | Through Hole | 0.1 " | 2.54 mm | Beryllium Copper | Solder | Beryllium Copper | 14 | Open Frame |
