FUSE 250V PICO II V/FA RoHS .375A
Description
AI

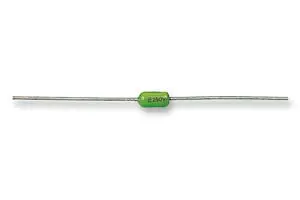

The PICO® II 263 Series Fuse is a specially designed axial leaded fuse that achieves a 250V rating in a small package.
Beta
⌘K
FUSE 250V PICO II V/FA RoHS .375A
FUSE 250V PICO II V/FA RoHS .375A
| Part | Current Rating (Amps) | Melting I²t | Mounting Type | Fuse Type | Voltage Rating - AC | Package / Case | Response Time | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 375 mA | 0.0444 | Through Hole | Board Mount (Cartridge Style Excluded) | 250 V | Axial | Fast Blow | CSA UR | -55 C | 125 °C | 7.11 mm | 3.94 mm | 0.28 in | 0.155 in | 50 A |
