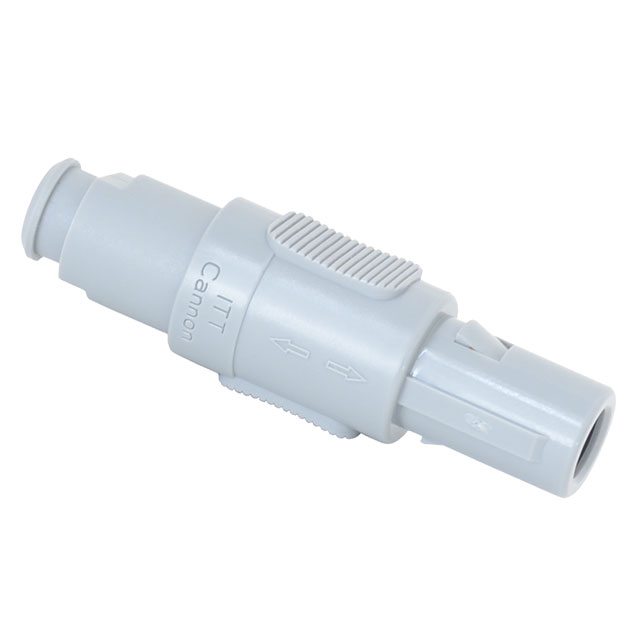

PLA3G Series

Catalog

CIRCULAR

...

Part	Features	Number of Positions	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Orientation [custom]	Contact Material	Material Flammability Rating	Fastening Type	Backshell Material, Plating	Primary Material	Mounting Type	Shielding	Insert Material	Color	Applications	Current Rating (Amps)	Connector Type	Shell Material	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Orientation	Cable Opening [Max]	Orientation [custom]
ITT Cannon, LLC PLA3G822J10	Backshell	10	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold	J	Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	3 A	Plug Male Pins	Polysulfone (PSU)	4 mm 5.2 mm	0.205 in	0.157 in
ITT Cannon, LLC PLA3G823H06	Backshell	6	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	6 A	Plug Male Pins	Polysulfone (PSU)		0.256 in	0.209 in	6.5 mm	5.3 mm	H
ITT Cannon, LLC PLA3G823J06	Backshell	6	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold	J	Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	6 A	Plug Male Pins	Polysulfone (PSU)		0.256 in	0.209 in	6.5 mm	5.3 mm
ITT Cannon, LLC PLA3G821E07	Backshell	7	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	5 A	Plug Male Pins	Polysulfone (PSU)		0.154 in	0.106 in		2.7 mm	E	3.9 mm
ITT Cannon, LLC PLA3G823010	Backshell	10	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	3 A	Plug Male Pins	Polysulfone (PSU)		0.256 in	0.209 in	6.5 mm	5.3 mm			0 °
ITT Cannon, LLC PLA3G821E08	Backshell	8	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	5 A	Plug Male Pins	Polysulfone (PSU)		0.154 in	0.106 in		2.7 mm	E	3.9 mm
ITT Cannon, LLC PLA3G821C03	Backshell		IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	10 A	Plug Male Pins	Polysulfone (PSU)		0.154 in	0.106 in		2.7 mm	C	3.9 mm
ITT Cannon, LLC PLA3G822J06	Backshell	6	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold	J	Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	6 A	Plug Male Pins	Polysulfone (PSU)	4 mm 5.2 mm	0.205 in	0.157 in
ITT Cannon, LLC PLA3G823E05	Backshell	5	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	7 A	Plug Male Pins	Polysulfone (PSU)		0.256 in	0.209 in	6.5 mm	5.3 mm	E
ITT Cannon, LLC PLA3G821H14	Backshell	14	IP50 - Dust Protected	0.51 µm	20 µin	150 °C	-50 °C	Gold		Copper Alloy	UL94 V-0	Latch Lock Push-Pull	Polysulfone (PSU)	Plastic	Free Hanging (In-Line)	Unshielded	Plastic	Gray	Industrial Medical Testing Equipment & Measurement	2 A	Plug Male Pins	Polysulfone (PSU)		0.154 in	0.106 in		2.7 mm	H	3.9 mm
