HLW21S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

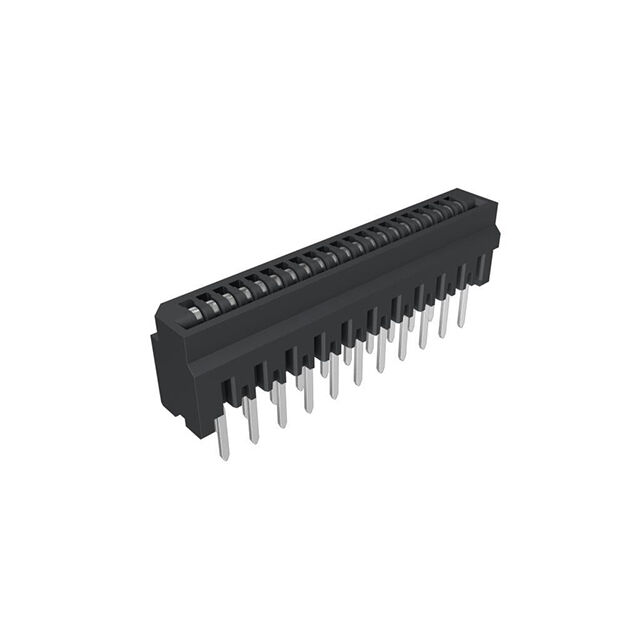

CONN FFC FPC VERT 21POS 1MM PCB
| Part | Housing Color | Mating Cycles | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Material Flammability Rating | Contact Material | FFC, FCB Thickness | Connector/Contact Type | Contact Finish | Voltage Rating | Mounting Type | Housing Material | Height Above Board [z] | Height Above Board [z] | Flat Flex Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 30 | 21 | -55 C | 85 °C | 1 mm | 0.039 in | UL94 V-0 | Phosphor Bronze | 0.33 mm | Contacts Vertical - 1 Sided | Tin | 100 V | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 5.9 mm | 0.232 " | FFC FPC | Solder |
