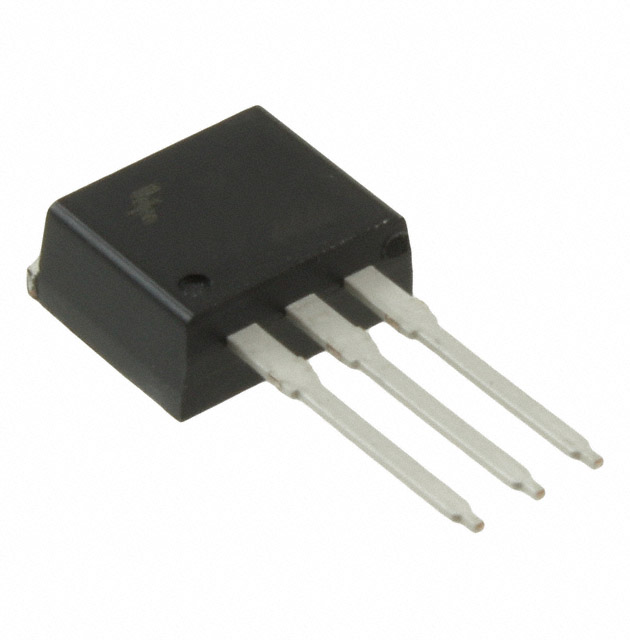

NPN Silicon Transistor
Key Features
• Wide Safe Operating Area
• Small Variance in Storage Time
• Built-in Free Wheeling Diode
• High Voltage and High Speed Power Switch Application
• Electronic Ballast Application
Beta
⌘K
NPN Silicon Transistor
NPN Silicon Transistor
| Part | Current - Collector Cutoff (Max) [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Transistor Type | Power - Max [Max] | Vce Saturation (Max) @ Ib, Ic [Max] | Supplier Device Package | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Frequency - Transition | Mounting Type | Current - Collector (Ic) (Max) [Max] | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 100 µA | 800 V | I2PAK TO-262-3 Long Leads TO-262AA | NPN | 100 W | 2.5 V | TO-262 (I2PAK) | 20 | 5 MHz | Through Hole | 3 A | 150 °C |
