3SU1102 Series

Manufacturer: Siemens

Catalog

ILLUMINATED PUSHBUTTON, MOM, RED

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Color - Actuator/Cap	Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Switch Function	Ingress Protection	Circuit	Illumination Type, Color	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination Voltage (Nominal)	Mounting Type	Termination Style
Siemens 3SU11020AB201CA0	10000000 Cycles	3000000 Cycles	500 V	Red	Illuminated Standard	10 A	22.3 mm	500 V	On-Mom	IP66 IP67 IP69K	SPST-NC	LED Red	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Screw Terminal

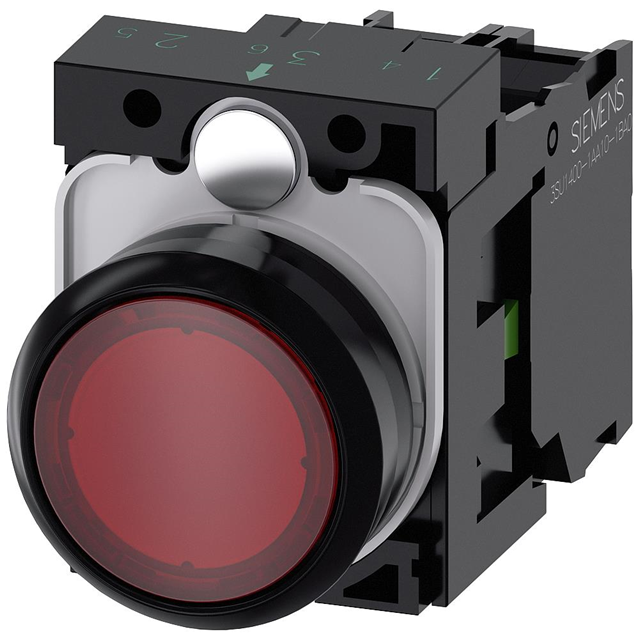

Siemens 3SU11020AB201BA0	10000000 Cycles	3000000 Cycles	500 V	Red	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom	IP66 IP67 IP69K	SPST-NO	LED Red	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Screw Terminal

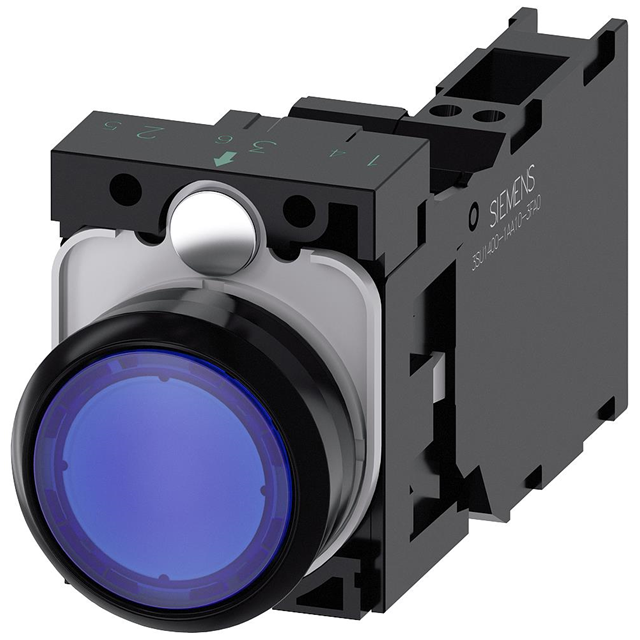

Siemens 3SU11020AB503FA0	10000000 Cycles	3000000 Cycles	500 V	Blue	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom On-Mom	IP66 IP67 IP69K	DPST-NO/NC	Blue LED	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Spring Terminal

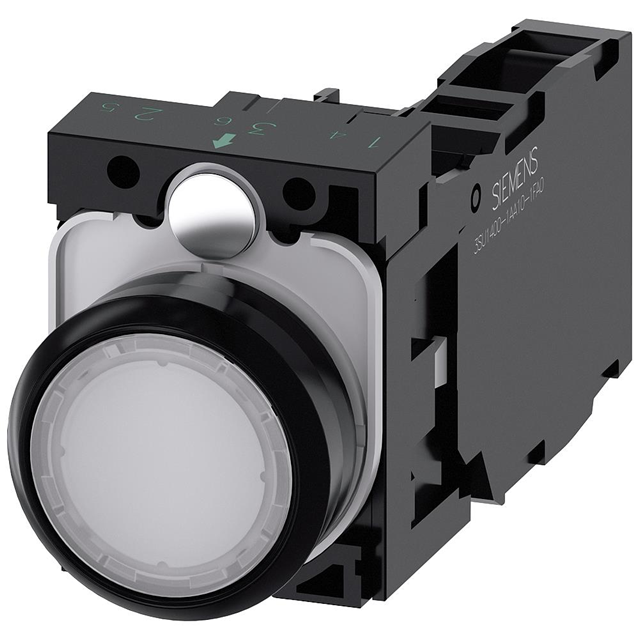

Siemens 3SU11020AB601FA0	10000000 Cycles	3000000 Cycles	500 V	White	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom On-Mom	IP66 IP67 IP69K	DPST-NO/NC	LED White	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Screw Terminal
Siemens 3SU11020AB303BA0	10000000 Cycles	3000000 Cycles	500 V	Yellow	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom	IP66 IP67 IP69K	SPST-NO	LED Yellow	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Spring Terminal

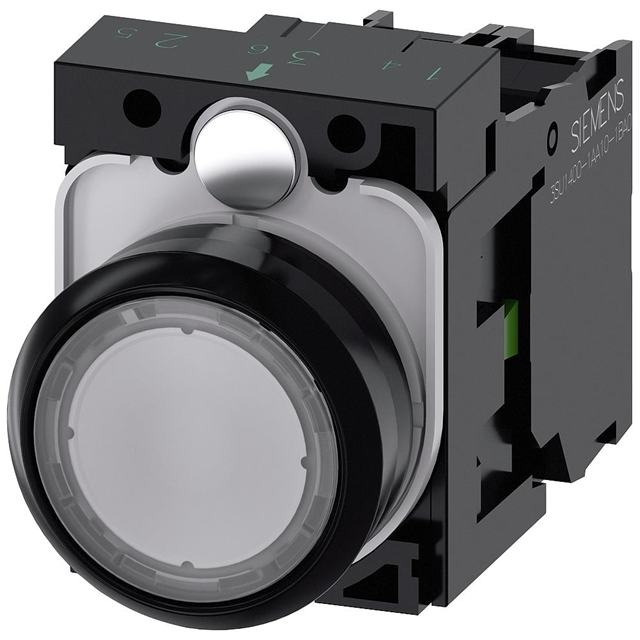

Siemens 3SU11020AB701BA0	10000000 Cycles	3000000 Cycles	500 V	Clear	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom	IP66 IP67 IP69K	SPST-NO	LED White	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Screw Terminal

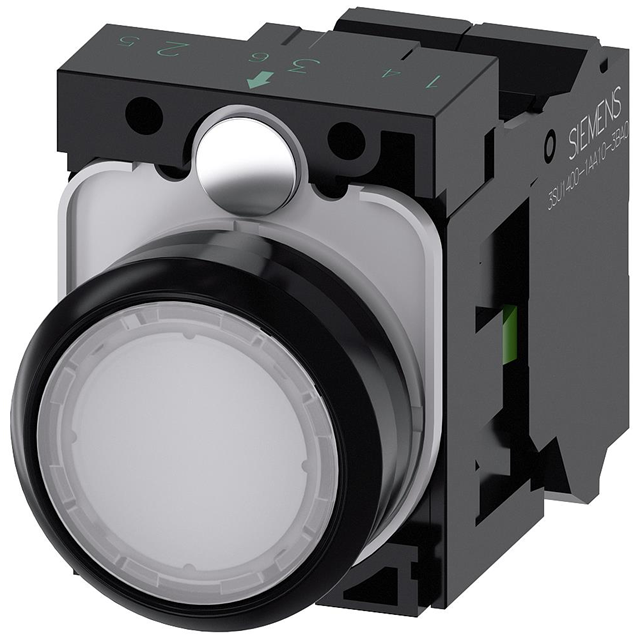

Siemens 3SU11020AB603BA0	10000000 Cycles	3000000 Cycles	500 V	White	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom	IP66 IP67 IP69K	SPST-NO	LED White	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Spring Terminal
Siemens 3SU11020AB703FA0	10000000 Cycles	3000000 Cycles	500 V	Clear	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom On-Mom	IP66 IP67 IP69K	DPST-NO/NC	LED White	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Spring Terminal

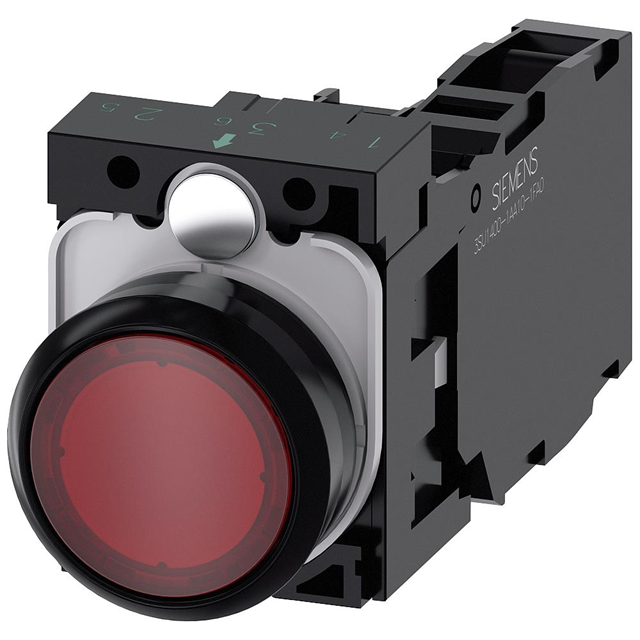

Siemens 3SU11020AB201FA0	10000000 Cycles	3000000 Cycles	500 V	Red	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom On-Mom	IP66 IP67 IP69K	DPST-NO/NC	LED Red	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Screw Terminal

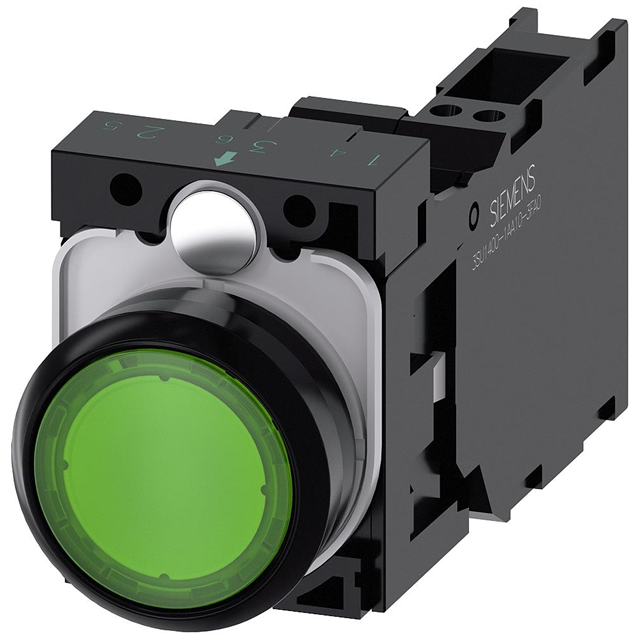

Siemens 3SU11020AB403FA0	10000000 Cycles	3000000 Cycles	500 V	Green	Illuminated Standard	10 A	22.3 mm	500 V	Off-Mom On-Mom	IP66 IP67 IP69K	DPST-NO/NC	Green LED	-25 °C	70 °C	Button Round	24 VAC/DC	Panel Mount Front	Spring Terminal
