E3Z-T61 Series

Manufacturer: Omron Automation and Safety

Catalog

SENSOR THROUGH-BEAM 15M NPN

Part	Ingress Protection	Output Configuration	Sensing Distance	Sensing Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Connection Method	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Sensing Distance	Sensing Distance
Omron Automation and Safety E3Z-T61A	IEC IEC IP67 IP67 IP69K	NPN	15 m	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)
Omron Automation and Safety E3Z-T61 5M	IEC IEC IP67 IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m
Omron Automation and Safety E3Z-T61A 5M	IEC IEC IP67 IP67 IP69K			Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	393.701 in	10 m
Omron Automation and Safety E3Z-T61-M1J 0.3M	IEC IEC IP67 IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m
Omron Automation and Safety E3Z-T61 0.5M	IEC IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m
Omron Automation and Safety E3Z-T61-D-M1J 0.3M	IEC IEC IP67 IP67 IP69K	NPN	15 m	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)

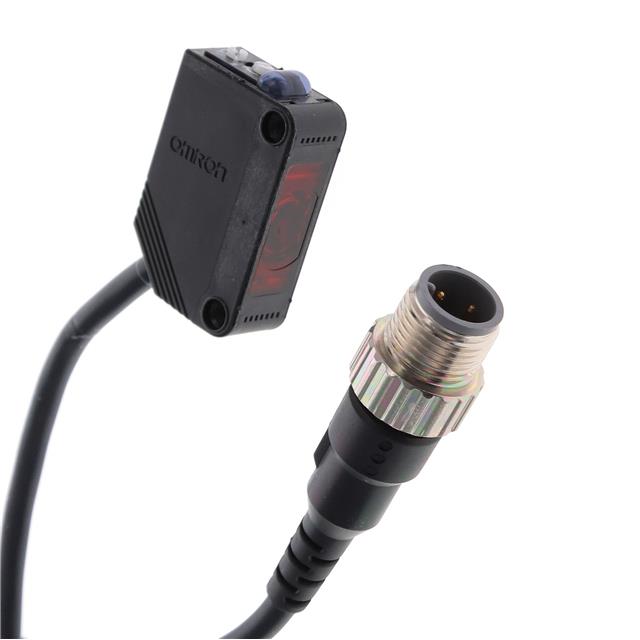

Omron Automation and Safety E3Z-T61AK-M1J 0.3M	IEC IEC IP67 IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m

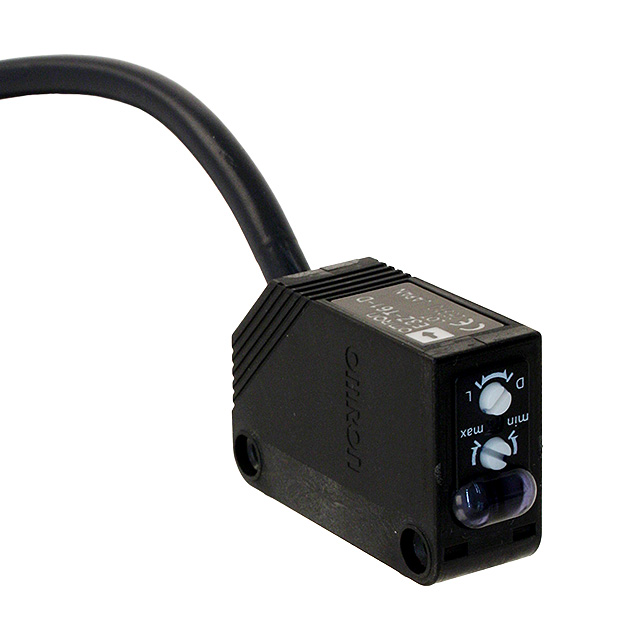

Omron Automation and Safety E3Z-T61-D 2M	IEC IEC IP67 IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m
Omron Automation and Safety E3Z-T61A 0.5M	IEC IEC IP67 IP67 IP69K			Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	393.701 in	10 m
Omron Automation and Safety E3Z-T61A-M3J 0.3M	IEC IEC IP67 IP67 IP69K		590.551 in	Through-Beam	1 ms	12 VDC	24 V	Cable	55 °C	-25 °C	Infrared (870nm)	15 m
