ECQ-E2395 Series

Catalog

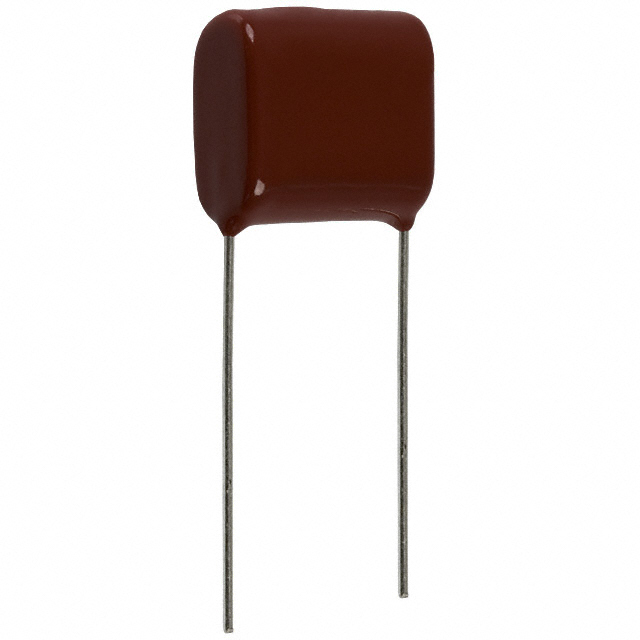

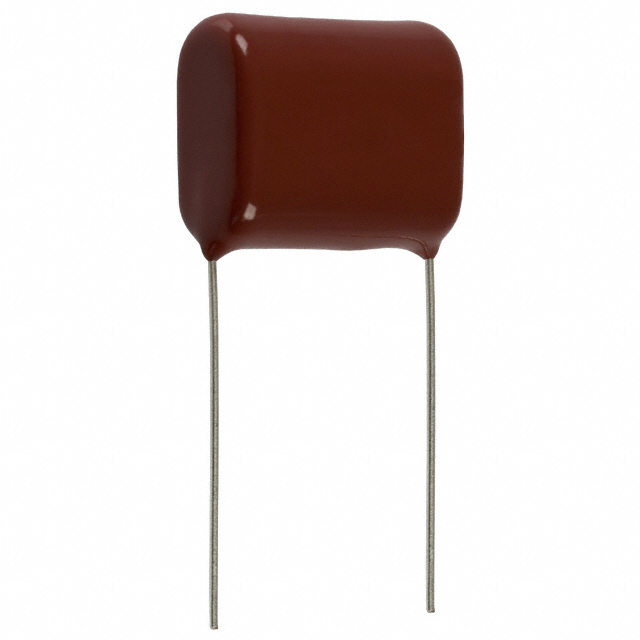

CAP FILM 3.9UF 5% 250VDC RADIAL

Part	Applications	Termination	Dielectric Material	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Voltage Rating - DC	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Panasonic Electronic Components ECQ-E2395JFW	General Purpose	PC Pins	Polyester Metallized	Through Hole	1.004 in	25.5 mm	-40 C	105 ░C	3.9 µF	26 mm	0.433 in	11 mm	1.024 in	5 %	250 V	15 mm	0.591 in	Radial
Panasonic Electronic Components ECQ-E2395KB	General Purpose	PC Pins	Polyester Metallized	Through Hole			-40 C	105 ░C	3.9 µF	20.8 mm		10.8 mm		10 %	250 V	17.5 mm	0.689 in	Radial	0.819 "	0.425 "	20.8 mm	0.819 in

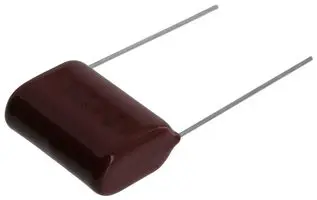

Panasonic Electronic Components ECQ-E2395JF	General Purpose	PC Pins	Polyester Metallized	Through Hole			-40 C	105 ░C	3.9 µF	26 mm	0.433 in	11 mm	1.024 in	5 %	250 V	22.5 mm	0.886 in	Radial					0.866 in	22 mm
Panasonic Electronic Components ECQ-E2395JFB	General Purpose	PC Pins	Polyester Metallized	Through Hole	1.004 in	25.5 mm	-40 C	105 ░C	3.9 µF	26 mm	0.433 in	11 mm	1.024 in	5 %	250 V	15 mm	0.591 in	Radial
Panasonic Electronic Components ECQ-E2395KFB	General Purpose	PC Pins	Polyester Metallized	Through Hole	1.004 in	25.5 mm	-40 C	105 ░C	3.9 µF	26 mm	0.433 in	11 mm	1.024 in	10 %	250 V	15 mm	0.591 in	Radial
