KFB2348 Series
Manufacturer: Delta Electronics
Beta
⌘K

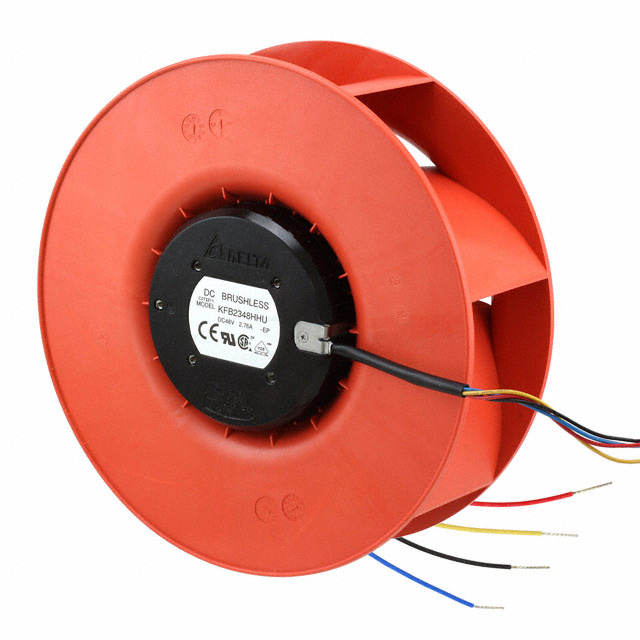

FAN IMP MTRZD 225X99MM 48VDC
| Part | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | RPM | Size / Dimension [diameter] | Static Pressure | Static Pressure | Width [y] | Approval Agency | Power (Watts) | Fan Type | Air Flow | Air Flow | Bearing Type | Noise | Weight | Weight | Voltage - Rated | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 2.2 A | 70000 Hrs | 36 VDC | 60 V | Plastic | Aluminum | 4 Wire Leads | 70 °C | -25 °C | IP56 - Dust Protected Water Resistant | 2600 RPM | 225 mm | 495.7 Pa | 1.99 in H2O | 99 mm | CE CSA UL VDE | 105.6 W | Motorized Impellers | 735.1 CFM | 20.58 m³/min | Ball | 71 dB(A) | 2.6 lbs | 1.2 kg | 48 VDC | GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach) |
 Delta Electronics | 2.3 A | 28 V | 60 V | Plastic | Aluminum | 3 Wire Leads | 2700 RPM | 225 mm | 672.6 Pa | 2.7 in H2O | 99 mm | CE CSA UL VDE | 110.4 W | Motorized Impellers | 771.5 CFM | 21.6 m³/min | Ball | 73.5 dB(A) | 2.6 lbs | 1.2 kg | 48 VDC | Speed Sensor (Tach) |
