170341 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

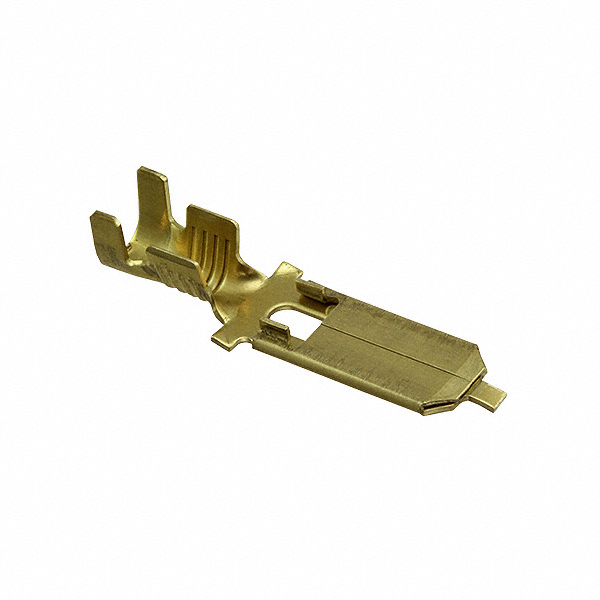

CONN QC TAB 12-14AWG 0.250 CRIMP
| Part | Termination | Terminal Type | Insulation | Gender | Length - Overall | Length - Overall | Tab Length | Tab Length | Contact Material | Tab Thickness | Tab Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Tab Width | Tab Width | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Standard | Non-Insulated | Male | 24.3 mm | 0.957 in | 0.543 in | 13.8 mm | Brass | 0.032 in | 0.81 mm | 14 AWG | 12 AWG | Free Hanging (In-Line) | 6.35 mm | 0.25 in | 0.15 " | 0.114 " | 2.9 mm | 3.81 mm |
