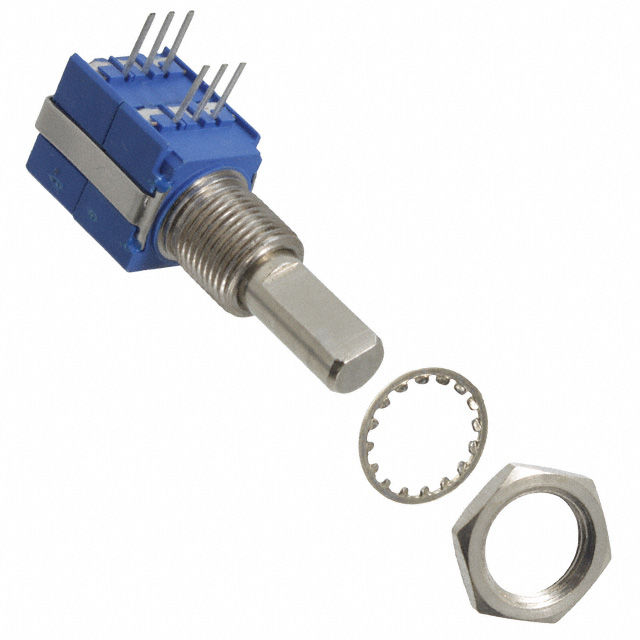

56AAD Series
Manufacturer: Bourns Inc.
Beta
⌘K
ROTARY POTENTIOMETER, PANEL CONTROL, 54 SERIES, 10 KOHM, LINEAR, 1 TURNS, 500 MW, W/ROTARY SWITCH
| Part | Size - Body [y] | Size - Body [x] | Size - Body [y] | Size - Body [x] | Number of Gangs | Resistive Material | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Temperature Coefficient | Taper | Built in Switch | Actuator Type | Tolerance | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Features | Bushing Thread | Rotation | Number of Turns | Termination Style | Adjustment Type | Mounting Type | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 12.5 mm | 0.522 " | 0.492 " | 13.25 mm | 1 | Conductive Plastic | 6.35 mm | 0.25 in | 1000 ppm/°C | Linear | Rotary SPDT | Flatted | 20 % | 0.875 in | 22.23 mm | 10k | Sealed | 3/8-32 | 290 ° | 1 | PC Pins | Side Adjustment | Panel Mount | 0.5 W | 0.5 W |
Bourns Inc. | 12.5 mm | 0.522 " | 0.492 " | 13.25 mm | 1 | Conductive Plastic | 6.35 mm | 0.25 in | 1000 ppm/°C | Linear | Rotary SPDT | Flatted | 20 % | 0.75 in | 19.05 mm | 10k | Sealed | 3/8-32 | 290 ° | 1 | PC Pins | Side Adjustment | Panel Mount | 0.5 W | 0.5 W |
Bourns Inc. | 12.5 mm | 0.522 " | 0.492 " | 13.25 mm | 1 | Conductive Plastic | 6.35 mm | 0.25 in | 1000 ppm/°C | Linear | Rotary SPDT | Flatted | 20 % | 0.875 in | 22.23 mm | 10k | Sealed | 3/8-32 | 290 ° | 1 | PC Pins | Side Adjustment | Panel Mount | 0.5 W | 0.5 W |
