SM02B-SH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

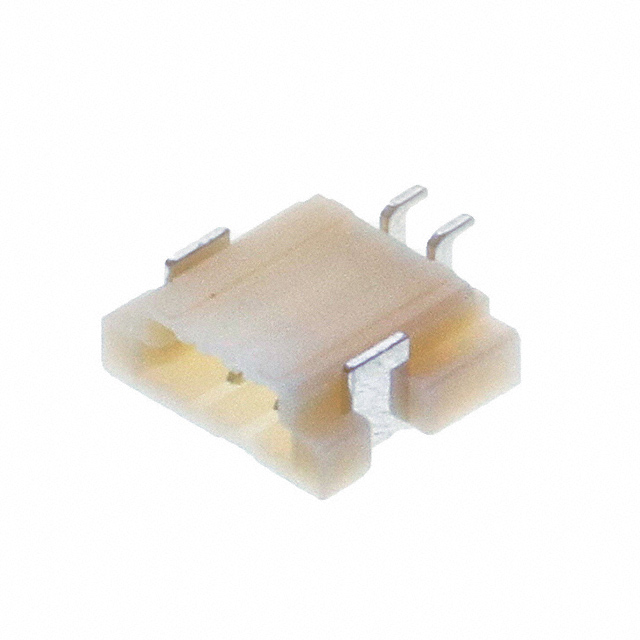

CONN HEADER SMD R/A 2POS 1MM
| Part | Features | Contact Shape | Contact Finish - Post | Number of Rows | Mounting Type | Connector Type | Number of Positions | Insulation Color | Contact Material | Style | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Contact Type | Shrouding | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Termination | Voltage Rating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Solder Retention | Rectangular | Tin | 1 | Right Angle Surface Mount | Header | 2 | Natural | Phosphor Bronze | Board to Cable/Wire | Nylon Polyamide (PA) | 85 °C | -25 °C | Push-Pull | Outer Shroud Contact | Shrouded - 4 Wall | 0.069 in | 1.75 mm | 1 mm | 0.039 in | UL94 V-0 | Solder | 50 V | All |
