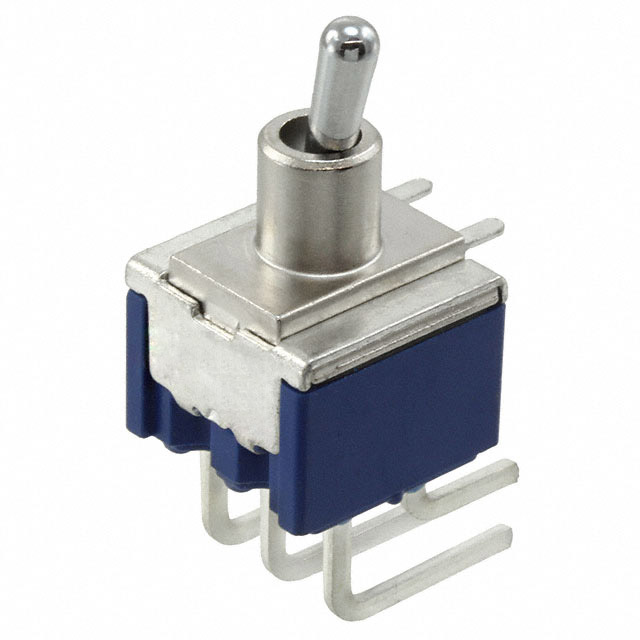

8G2024 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Termination Style | Actuator Length [x] | Illumination | Actuator Type | Current Rating (Amps) | Switch Function | Bushing Thread | Features | Voltage Rating - DC | Mounting Type | Voltage Rating - AC | Circuit | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | PC Pin | 6.8 mm | Non-Illuminated | Standard Round | 4 A 6 A | On-Off-On | Unthreaded | Washable | 30 V | Right Angle Through Hole | 125 V | DPDT | -25 °C | 80 °C |
