SWI6-7.5 Series

Manufacturer: CUI Inc.

Catalog

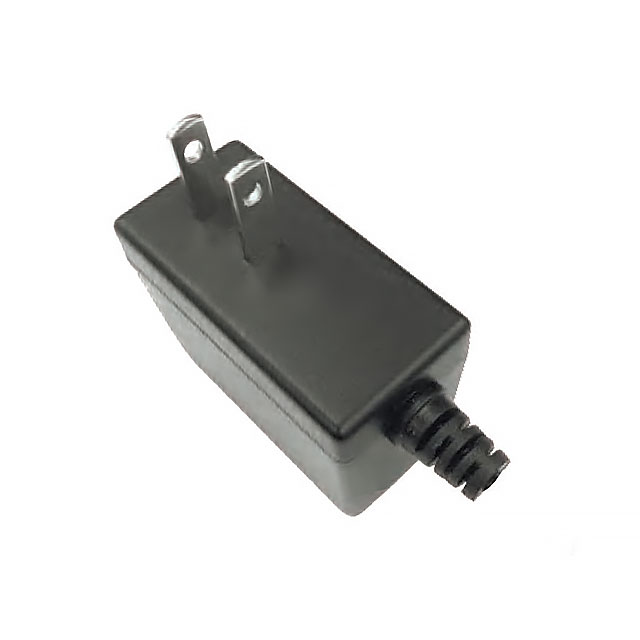

AC/DC WALL MNT ADAPTER 7.5V 7.5W

Part	Polarization	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Current - Output (Max) [Max]	Form	Approval Agency	Efficiency	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Type	Input Connector	Standard Number	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Cord Length	Cord Length	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Output Connector [z]
CUI Inc. SWI6-7.5-E-P6	Positive Center	Europe	264 VAC	90 VAC	7.5 V	1 A	Wall Mount	CB Scheme EN IEC	Level VI	100 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Fixed Blade	CEE 7/16	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	ITE (Commercial)	2.36 " 60 mm	1.1 " 28 mm	2.2 in 56 mm	7.5 W	1.5 m	59 in	40 °C
CUI Inc. SWI6-7.5-N-P7	Positive Center	North America	264 VAC	90 VAC	7.5 V	1 A	Wall Mount	CB Scheme CSA FCC IEC PSE UL	Level VI	100 mW	1.35 mm 3.5 mm	9.5 mm	Barrel Plug	Fixed Blade	NEMA 1-15P	60950-1 62368-1 C22.2 No. 60950-1	ITE (Commercial)	42 mm	28 mm	56 mm	7.5 W	1.5 m	59 in	40 °C	1.65 "	2.2 in	1.1 in
CUI Inc. SWI6-7.5-E-P6R	Positive Center	Europe	264 VAC	90 VAC	7.5 V	1 A	Wall Mount	CB Scheme EN IEC	Level VI	100 mW	2.5 mm 5.5 mm		Barrel Plug R/A	Fixed Blade	CEE 7/16	55024 55032 Class B 60950-1 61000-3-2 61000-3-3	ITE (Commercial)	2.36 " 60 mm	1.1 " 28 mm	2.2 in 56 mm	7.5 W	1.5 m	59 in	40 °C				9.5 mm
