ulp Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH: PUSH-BUTTON; POS: 2; SPDT; 0.1A/28VDC; TRANSPARENT; 2N; ULP
| Part | Circuit | Type | Actuator Marking | Mounting Type | Switch Function | Termination Style | Illumination Type, Color | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating (Amps) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Color - Actuator/Cap | Voltage Rating - AC | Voltage Rating - DC | Mechanical Life | Electrical Life | Actuator Type | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

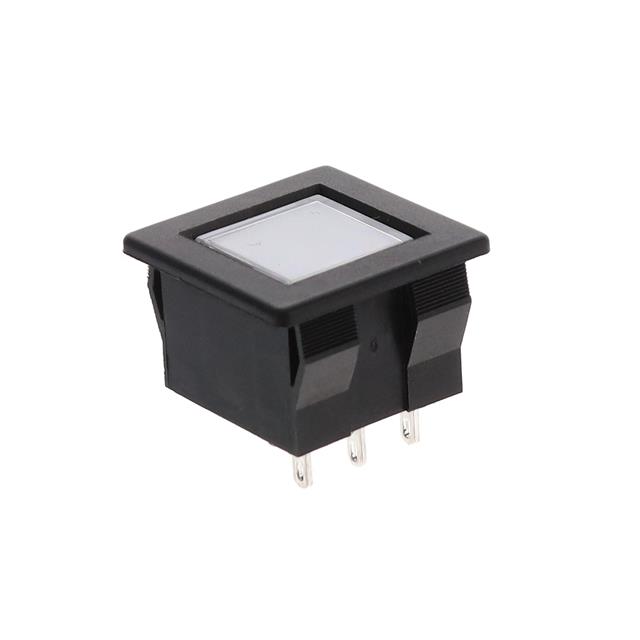

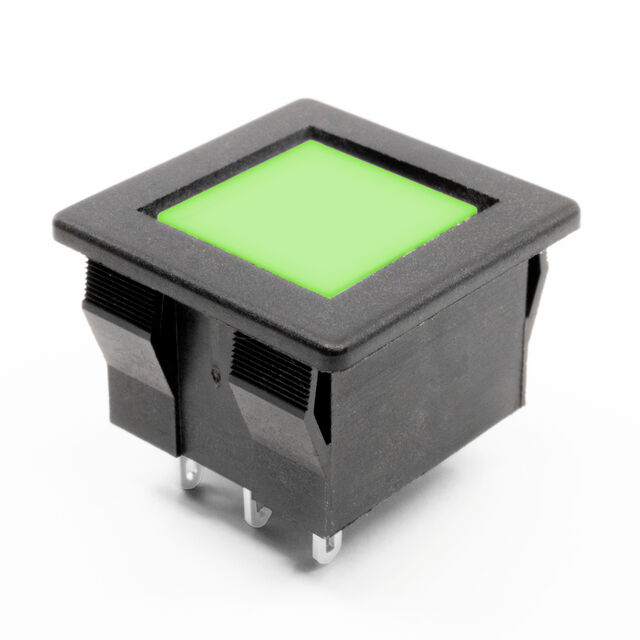

 E-Switch | SPDT | Illuminated Standard | No Marking | Panel Mount Snap-In | On-Mom | Solder Lug | Green/Red LED | 15.8 mm | 17.7 mm | 0.4 VA | Tactile Feedback | -20 ░C | 70 °C | Clear | 28 V | 28 V | ||||

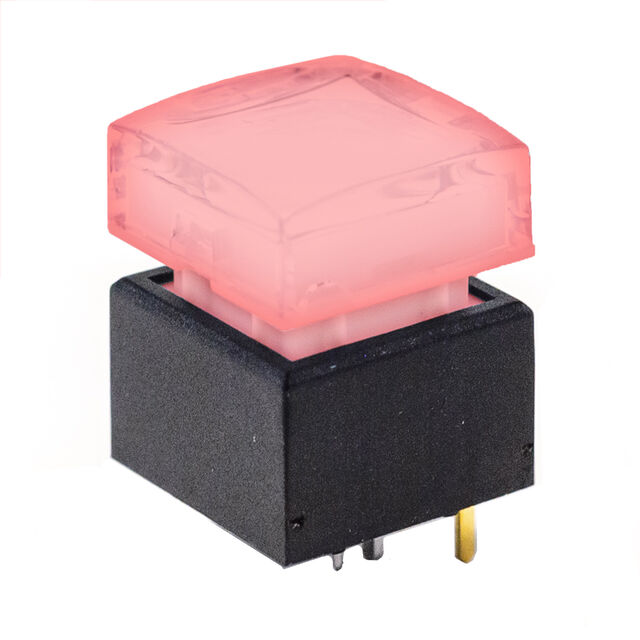

 E-Switch | SPDT | Illuminated Standard | Through Hole | On-Mom | PC Pin | Blue Green LED Red | 100 mA | -40 C | 85 °C | Clear | 28 V | 1000000 Cycles | 200000 Cycles | Button Square | 2.1 VDC 3.1 VDC 3.2 VDC | |||||
 E-Switch | SPDT | Illuminated Standard | Panel Mount Snap-In | On-Mom | Solder Lug | LED Red White | 100 mA | -40 C | 85 °C | Clear | 28 V | Button Square | 1.95 VDC 3.3 VDC |
