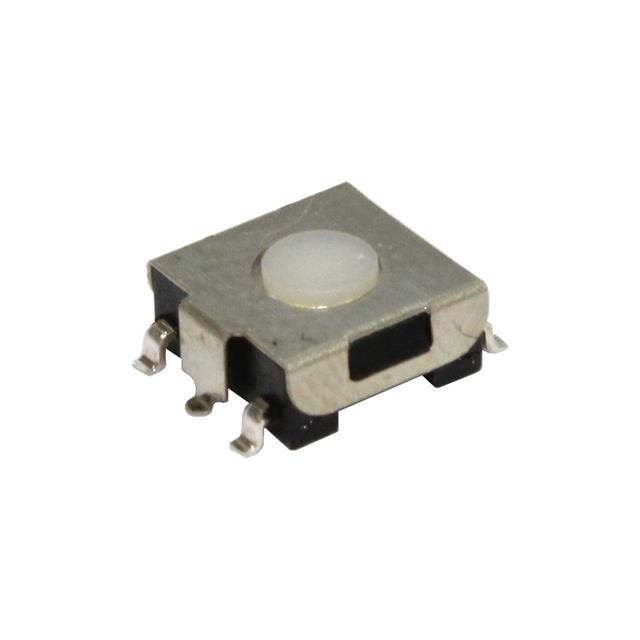

CS1109A Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Outline [x]	Outline [y]	Operating Force	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Height off PCB, Vertical [z]	Illumination	Circuit	Termination Style	Actuator Type	Switch Function	Contact Rating @ Voltage
CIT Relay and Switch CS1109A3.1	0.25 mm	Polyamide (PA46) Nylon 4/6	6.2 mm	6.2 mm	160 gf	Top Actuated	85 °C	-40 C	Surface Mount	3.1 mm	Non-Illuminated	SPST-NO	Gull Wing	Standard	Off-Mom	0.05 A 50 VDC
CIT Relay and Switch CS1109A2.6	0.25 mm	Polyamide (PA46) Nylon 4/6	6.2 mm	6.2 mm	160 gf	Top Actuated	85 °C	-40 C	Surface Mount	2.6 mm	Non-Illuminated	SPST-NO	Gull Wing	Standard	Off-Mom	0.05 A 50 VDC
