14-141 Series
Manufacturer: EAO
Beta
⌘K

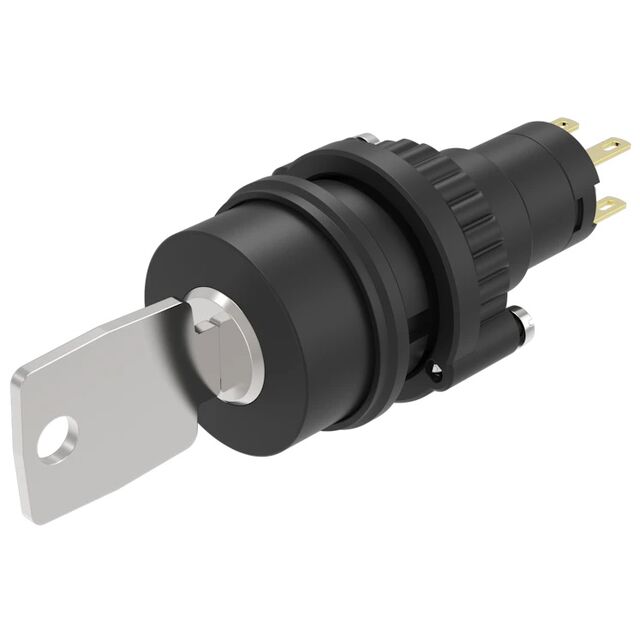

SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Depth Behind Flange | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Features | Mounting Type | Termination Style | Circuit | Switch Function | Panel Cutout Dimensions [diameter] | Angle of Throw | Voltage Rating - AC | Contact Timing | Actuator Type | Current Rating (Amps) | Key Removable Positions | Number of Positions | Depth Behind Flange [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 35.5 mm | 2000000 Cycles | 55 °C | -25 °C | IP65 | Panel Mount | Solder Lug | DPST-NO/NC | Off-Mom On-Mom | 22.3 mm | 42 ° | 250 V | Not Specified | Flat Key | 5 A | 1 | 2 | |
 EAO | 2000000 Cycles | 55 °C | -25 °C | IP65 | Panel Mount | Solder Quick Connect - 0.110" (2.8mm) | DPST-NO/NC | Off-Mom On-Mom | 22.3 mm | 42 ° | 250 V | Not Specified | Flat Key | 5 A | 1 | 2 | 45.5 mm |
